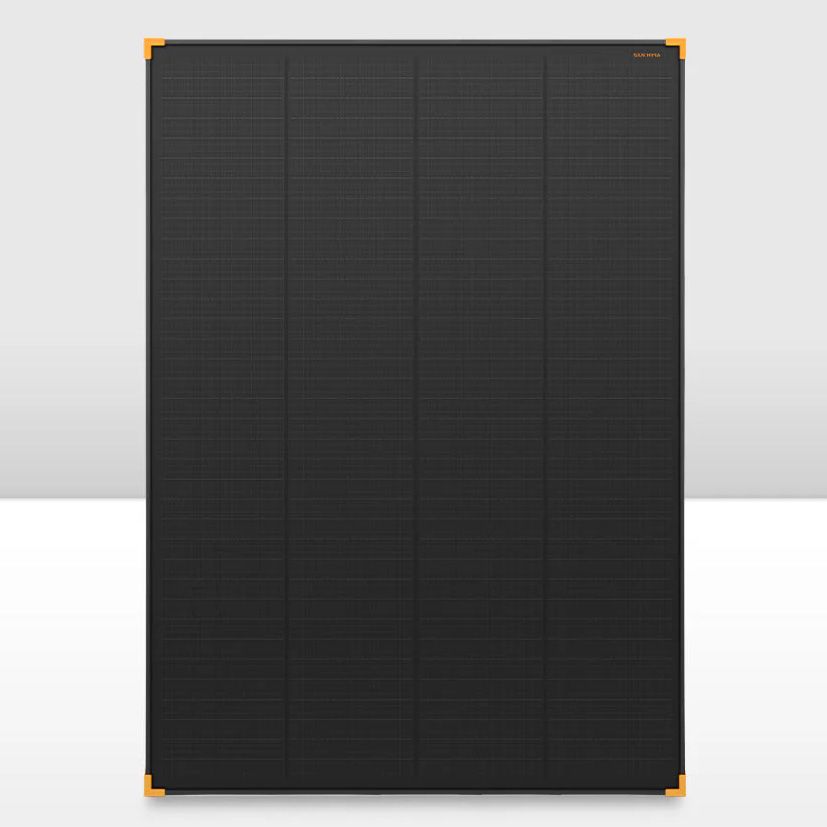

San Hima 200W Shingled Fixed Solar Panel
SKU SH-FISED-SG200W-VOR
R3 039.13
BULK DISCOUNT
Bulk pricing available for quantities of 2 units or more
Buy more, save more
| Quantity | Price per item | Discount |
| 2 items | R2 735.22 | 10% off |
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
San Hima 200W Shingled Fixed Solar Panel
Product Details
San Hima 200W Shingled Fixed Solar Panel
High-Efficiency Solar Power for Caravans, Campers, 4WDs and Boats
Take your off-grid adventures further with the San Hima 200W Shingled Solar Panel. Designed to deliver superior performance and durability, this advanced solar panel utilises innovative shingled cell technology to maximise energy production while improving reliability in demanding outdoor environments.
Unlike conventional solar panels that rely on busbars, ribbons, and soldered connections, shingled solar technology uses overlapping cell strips bonded with electrically conductive adhesive (ECA). This design reduces energy loss, minimises shading effects, improves hotspot resistance, and can deliver up to 15–20% more power output compared to traditional solar panels.
Built with a heavy-duty aluminium frame, tempered glass, and an IP68 waterproof rating, the San Hima 200W Solar Panel is ideal for caravans, campers, trailers, boats, and 4WD vehicles that demand dependable power wherever the journey leads.
Features
- Advanced shingled solar cell technology maximises energy production and efficiency
- Produces up to 15–20% more power output compared to conventional solar panels
- Eliminates traditional busbars, ribbons, and soldered joints for improved reliability
- Electrically conductive adhesive (ECA) construction reduces electrical resistance and power loss
- Parallel cell configuration improves efficiency and performance
- Enhanced hotspot resistance helps maintain output during partial shading conditions
- Improved shock resistance compared to conventional monocrystalline panels
- Greater resistance to vibration and impact for off-road applications
- Heavy-duty aluminium frame provides excellent structural strength
- Tempered glass surface enhances durability and weather resistance
- IP68-rated waterproof and dustproof construction for harsh outdoor environments
- Ideal for caravans, campers, trailers, 4WD vehicles, boats, and off-grid power systems
- Compatible with AGM, GEL, Flooded, Lithium-Ion, and LiFePO4 battery systems
- Clean all-black appearance with no visible circuitry for a modern aesthetic
- Designed for reliable long-term performance in demanding conditions
Specifications
| Specification | Details |
|---|---|
| Solar Cell Technology | Shingled Cells |
| Colour | Black |
| Maximum Power (Pmax) | 200W |
| Open Circuit Voltage (VOC) | 24.8V |
| Short Circuit Current (ISC) | 10.8A |
| Maximum Power Voltage (VMP) | 19.8V |
| Maximum Power Current (IMP) | 10.1A |
| Maximum System Voltage | 1000V |
| Maximum Series Fuse Rating | 15A |
| Operating Temperature Range | -40°C to 85°C |
| Waterproof Rating | IP68 |
| Power Tolerance | ±3% |
Dimensions & Weight
| Specification | Details |
| Product Dimensions | 1260 x 890 x 30mm |
| Package Dimensions | 1330 x 955 x 75mm |
| Gross Weight | 15.65kg |
Package Contents
- 1 x San Hima 200W Shingled Solar Panel
- 1 x User Manual
Ideal Applications
- 4WD Vehicles
- Caravans
- Campers
- RVs and Motorhomes
- Trailers
- Boats
- Off-Grid Battery Systems
- Remote Power Installations
Warranty
5 Year Manufacturer Warranty
