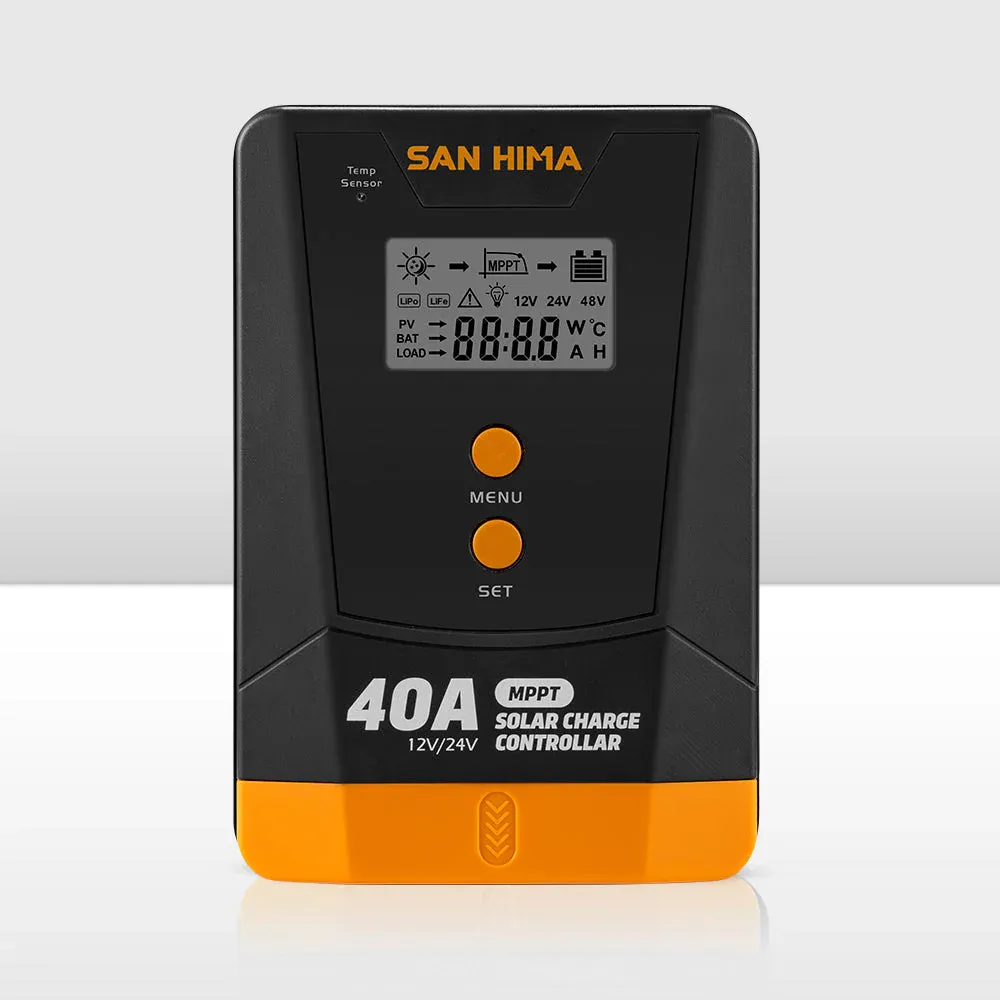

San Hima Solar Charge Controller - 40A MPPT - 12V/24V
SKU SH-MPPT-MPJ4-40A-VOR
R2 604.35
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
San Hima Solar Charge Controller - 40A MPPT - 12V/24V
Product Details
San Hima 40A MPPT Solar Charge Controller – 12V/24V | Bluetooth | LCD Display
Maximise the performance of your solar power system with the San Hima 40A MPPT Solar Charge Controller. Designed for caravans, campers, off-grid cabins, 4x4 touring setups, and backup power systems, this advanced controller uses Maximum Power Point Tracking (MPPT) technology to extract the maximum available energy from your solar panels, delivering faster, more efficient battery charging than conventional PWM controllers.
With an impressive 99.5% tracking efficiency and up to 98% conversion efficiency, the San Hima MPPT controller ensures your batteries receive optimal charging performance under a wide range of environmental conditions. Built-in Bluetooth connectivity and an easy-to-read LCD display provide convenient monitoring and system management, allowing you to view real-time performance data and adjust settings directly from your smartphone.
Compatible with both 12V and 24V systems, this versatile controller supports lithium-ion, flooded, AGM, gel, and calcium batteries, making it an ideal solution for modern off-grid power installations.
Features
- Advanced MPPT technology delivers up to 99.5% tracking efficiency for maximum solar energy harvest
- Peak conversion efficiency of up to 98% improves charging performance and system efficiency
- Built-in Bluetooth module allows remote monitoring and configuration via smartphone
- Large LCD display provides clear real-time system information and charging status
- Automatic 12V and 24V system voltage recognition for simple installation
- Supports lithium-ion, flooded, AGM, gel, and calcium battery types
- Intelligent multi-stage charging optimises battery performance and longevity
- Automatic lithium battery activation function
- Integrated temperature sensor provides accurate temperature compensation during charging
- Load output terminals support connection of DC appliances and custom load management modes
- Comprehensive protection against reverse polarity, short circuits, overload, over-temperature, overcharge, over-discharge, and reverse current
- Designed for caravans, motorhomes, campers, off-grid cabins, marine systems, and solar backup installations
Specifications
Electrical Specifications
| Specification | Details |
|---|---|
| System Voltage | 12V / 24V Auto Recognition |
| Rated Battery Current | 40A |
| Rated Load Current | 30A |
| Battery Voltage Range | 8V – 32V |
| Maximum Solar Input Voltage | 100V |
| Maximum Solar Input Power (12V System) | 520W |
| Maximum Solar Input Power (24V System) | 1,040W |
| Self Consumption | ≤50mA @ 12V/24V |
| Temperature Compensation | -4mV/°C/2V (25°C) |
General Specifications
| Specification | Details |
| Maximum Terminal Size | 16mm² (5AWG) |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -30°C to 80°C |
| Humidity Range | ≤90% Non-Condensing |
| Enclosure Rating | IP32 |
| Maximum Operating Altitude | 3,000m |
| Certifications | IEC, LVD |
| Package Dimensions | 25 x 21.5 x 11.5cm |
| Gross Weight | 1.68kg |
What's Included
- 1 x San Hima 40A MPPT Solar Charge Controller
- 1 x Mounting Template
- 1 x User Manual
Ideal Applications
- Caravans and campers
- Off-grid cabins and tiny homes
- 4x4 touring and overlanding setups
- Marine and boating applications
- Solar backup power systems
- Remote monitoring installations
- Lithium and lead-acid battery systems
Warranty
2-Year Manufacturer's Warranty
