San Hima 120W Mono-HPBC Fixed Solar Panel
SKU SH-FISED-BC120W-VOR
R2 430.43
BULK DISCOUNT
Bulk pricing available for quantities of 2 units or more
Buy more, save more
| Quantity | Price per item | Discount |
| 2 items | R2 187.39 | 10% off |
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
San Hima 120W Mono-HPBC Fixed Solar Panel
Product Details

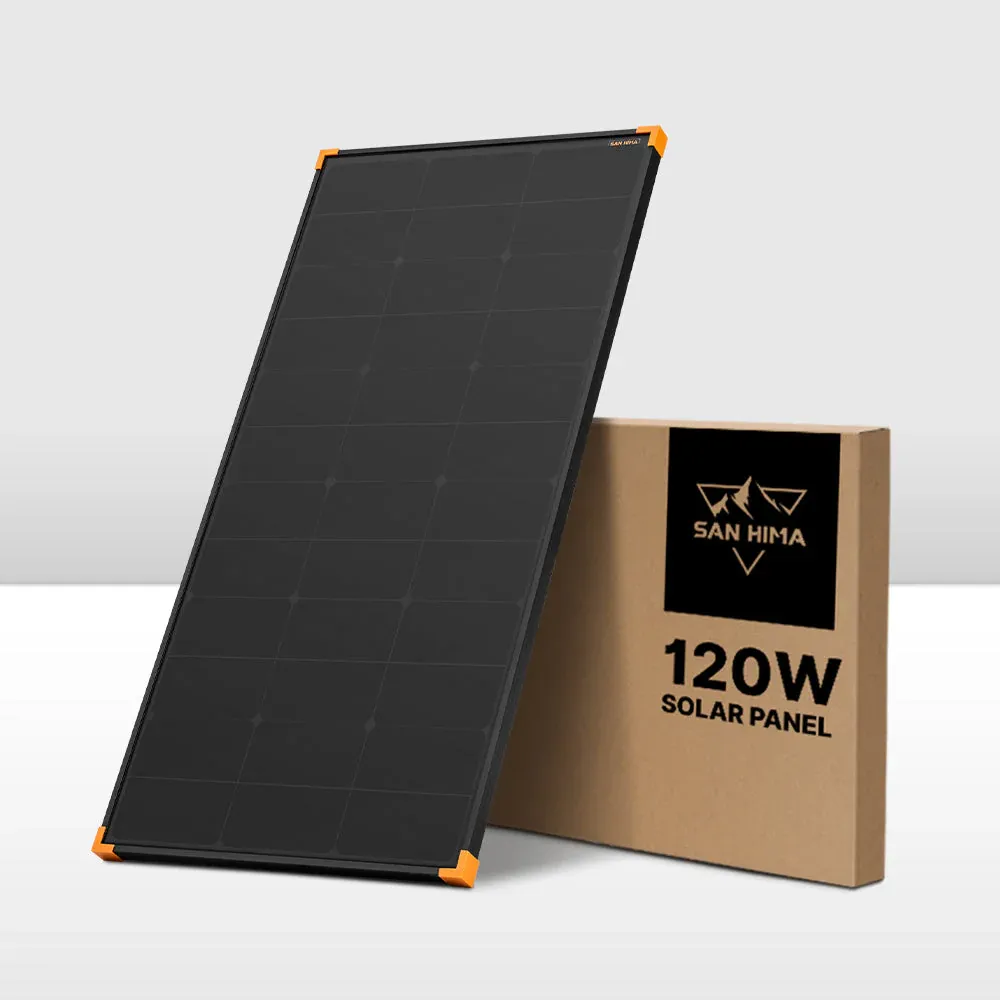

San Hima 120W Mono-HPBC Fixed Solar Panel
High-Efficiency Solar Power for Off-Grid Adventures
Power your next adventure with the San Hima 120W Mono-HPBC Fixed Solar Panel. Designed for caravans, campers, RVs, boats, trailers, and off-grid power systems, this advanced solar panel combines cutting-edge Hybrid Passivated Back Contact (HPBC) technology with rugged construction to deliver exceptional performance in a wide range of environments.
Unlike conventional solar panels, HPBC cells relocate electrical contacts to the rear of the cell, eliminating front-side shading and maximising light absorption. This innovative design achieves conversion efficiencies of up to 25%, while maintaining excellent performance in low-light conditions and hot climates.
Built to withstand demanding outdoor conditions, the panel features a durable aluminium frame, reinforced corners, anti-reflective tempered glass, and an IP68 waterproof rating. Whether mounted on a caravan roof, trailer, canopy, boat, or remote power installation, the San Hima 120W HPBC Solar Panel provides reliable, efficient energy wherever your journey takes you.
Features
- Advanced Monocrystalline HPBC (Hybrid Passivated Back Contact) solar cell technology
- Delivers industry-leading efficiency of up to 25%
- Back-contact cell design eliminates shading losses and maximises light absorption
- Excellent low-light performance for increased power generation throughout the day
- Improved heat resistance helps maintain efficiency in hot climates
- Shade-tolerant bypass diode technology maintains power output during partial shading
- Produces up to 120W of reliable solar charging power
- Delivers up to 10A charging capability in 12V systems
- Supports up to four panels connected in series or parallel configurations
- Ideal for caravans, campers, RVs, boats, trailers, canopies, and off-grid installations
- IP68-rated waterproof and dustproof construction for harsh outdoor environments
- Durable 3.2mm anti-reflective tempered glass maximises light transmission and impact resistance
- Reinforced aluminium frame provides strength and long-term durability
- Corner protectors help guard against accidental impacts and vibration damage
- Compact dimensions allow easy roof mounting without excessive space requirements
- MC4 connectors provide secure, industry-standard plug-and-play connections
- Fully compatible with solar charge controllers, battery systems, and portable power stations
- Modern all-black design complements contemporary vehicle and roof rack installations
Specifications
| Specification | Details |
|---|---|
| Solar Cell Type | Monocrystalline HPBC |
| Maximum Power | 120W |
| Open Circuit Voltage (VOC) | 26.36V |
| Short Circuit Current (ISC) | 6.01A |
| Maximum Power Voltage (VMP) | 20.49V |
| Maximum Power Current (IMP) | 5.86A |
| Module Efficiency | Up to 25% |
| Maximum System Voltage | 1000V |
| Maximum Series Fuse Rating | 20A |
| Maximum Series / Parallel Connections | 4S / 4P |
| Power Tolerance | ±3% |
| Output Tolerance | ±3% |
| IP Rating | IP68 |
| Operating Temperature | -40°C to 85°C |
| Nominal Operating Cell Temperature (NOCT) | 45 ± 2°C |
| Front Surface | Tempered Glass |
| Frame Material | Aluminium |
| Connectors | MC4 |
Dimensions & Weight
| Specification | Details |
| Panel Dimensions | 1134 x 580 x 30mm |
| Package Dimensions | 132 x 51 x 7cm |
| Gross Weight | 8.95kg |
Package Contents
- 1 x San Hima 120W Mono-HPBC Fixed Solar Panel
- 1 x User Manual
Ideal Applications
- Caravans
- Campers
- RVs and Motorhomes
- UTE Canopies
- Trailers
- Boats
- Off-Grid Battery Systems
- Portable Power Stations
- Remote Power Installations
Warranty
5 Year Manufacturer Warranty
