San Hima 360W Folding Solar Blanket Kit with 20A MPPT Controller
Product Details

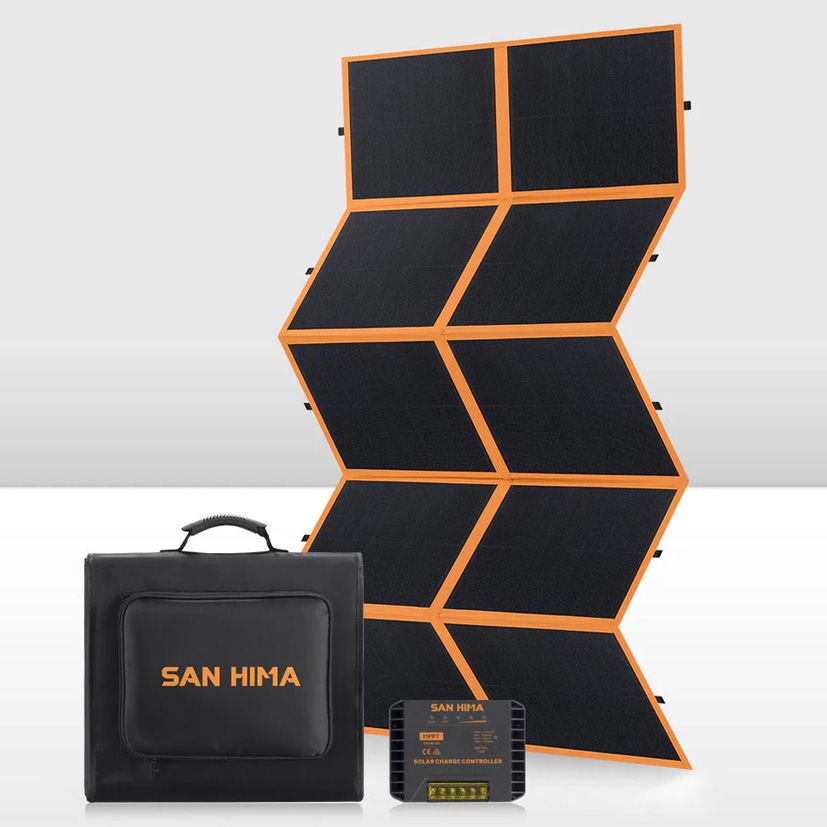

San Hima 360W Folding Solar Blanket Kit with 20A MPPT Controller
High-Efficiency Portable Solar Power for Off-Grid Adventures
Harness the power of the sun wherever your adventures take you with the San Hima 360W Folding Solar Blanket Kit. Featuring advanced Hybrid Passivated Back Contact (HPBC) solar cell technology and an impressive 24% conversion efficiency, this premium solar blanket delivers exceptional performance for camping, caravanning, overlanding, and off-grid living.
Unlike conventional solar panels, HPBC technology relocates electrical contacts to the rear of the cells, reducing shading and maximising light absorption for greater energy production. Combined with a durable ETFE coating and anti-crack flexible construction, the San Hima Solar Blanket is built to withstand demanding outdoor conditions while remaining lightweight and easy to transport.
Supplied with a powerful 20A MPPT solar charge controller, this kit efficiently charges a wide range of battery types while providing USB charging for phones, tablets, and other portable devices.
Features
- Advanced HPBC (Hybrid Passivated Back Contact) solar cell technology delivers outstanding energy production
- Industry-leading 24% conversion efficiency maximises solar harvesting performance
- Rear-contact cell design eliminates front-side shading and increases light absorption
- Durable ETFE coating resists corrosion, stains, moisture, and environmental damage
- Self-cleaning non-stick surface helps maintain optimal solar performance
- Anti-crack flexible construction provides excellent durability and resistance to physical stress
- High-output 360W design generates reliable power for off-grid applications
- Lightweight and portable folding design packs away for easy transport and storage
- Folds into a compact carry bag measuring just 478 x 430 x 95mm
- Integrated carry handle and storage pocket improve portability and convenience
- Includes hanging loops for easy deployment and positioning
- 20A MPPT solar charge controller maximises charging efficiency
- Suitable for 12V and 24V battery systems
- Supports Lead Acid, AGM, GEL, Calcium, and LiFePO4 batteries
- Capable of activating sleeping LiFePO4 batteries
- USB Type-A and USB Type-C outputs allow direct charging of mobile devices
- Comprehensive protection against reverse polarity, overcurrent, undervoltage, overvoltage, and short circuits
- Anderson-style plug connections provide secure, reliable plug-and-play installation
- Ideal for camping, caravanning, overlanding, RV travel, and remote power applications
Solar Blanket Specifications
| Specification | Details |
|---|---|
| Maximum Power (Pmax) | 360W |
| Cell Type | HPBC (Hybrid Passivated Back Contact) |
| Cell Coating | ETFE |
| Backing Material | Nylon |
| Conversion Efficiency | 24% |
| Open Circuit Voltage (VOC) | 28.5V |
| Short Circuit Current (ISC) | 17.9A |
| Maximum Power Voltage (VMP) | 21.3V |
| Maximum Power Current (IMP) | 16.9A |
| Maximum System Voltage | 42V |
| Power Tolerance | ±5% |
| Operating Temperature | -40°C to 85°C |
| Connector Type | Anderson-style Plug |
| Certifications | CE |
| Open Dimensions | 2860 x 960 x 5mm |
| Folded Dimensions | 478 x 430 x 95mm |
| Product Weight | 8.7kg |
MPPT Controller Specifications
| Specification | Details |
| Battery Voltage Range | 12V / 24V |
| Maximum PV Open Circuit Voltage | 50V |
| Maximum Solar Input Voltage | 50V |
| Rated Charge Current | 20A |
| Rated Discharge Current | 20A |
| Maximum PV Input Power | 500W |
| Discharge Circuit Voltage Drop | ≤0.3V |
| Self Consumption | ≤8mA |
| No Load Current | ＜10mA |
| Standby Current Draw | ≤4mA |
| Nominal Current Draw | ≤10mA |
| USB Output | Type-A + Type-C (5V / 2.4A) |
| Operating Temperature | -20°C to 50°C |
| Storage Temperature | -30°C to 70°C |
| Relative Humidity | ≤90% |
Package Contents
- 1 x San Hima 360W Folding Solar Blanket
- 1 x San Hima 20A MPPT Solar Charge Controller with Anderson-style Plugs
- 1 x 4.5m Extension Cable with Anderson-style Plugs
- 1 x Battery Cable with Alligator Clips and Anderson-style Plug
- 1 x User Manual
Package Information
- Package Dimensions: 510 x 468 x 135mm
- Package Weight: 9.4kg
Warranty
2 Year Manufacturer Warranty
