Name: San Hima Solar Charge Controller - 60A MPPT - 12V/24V
Brand: 4WD Warehouse
SKU: SH-MPPT-MPJ6-60A-VOR
Price: 3434.78 ZAR
Availability: InStock

+10

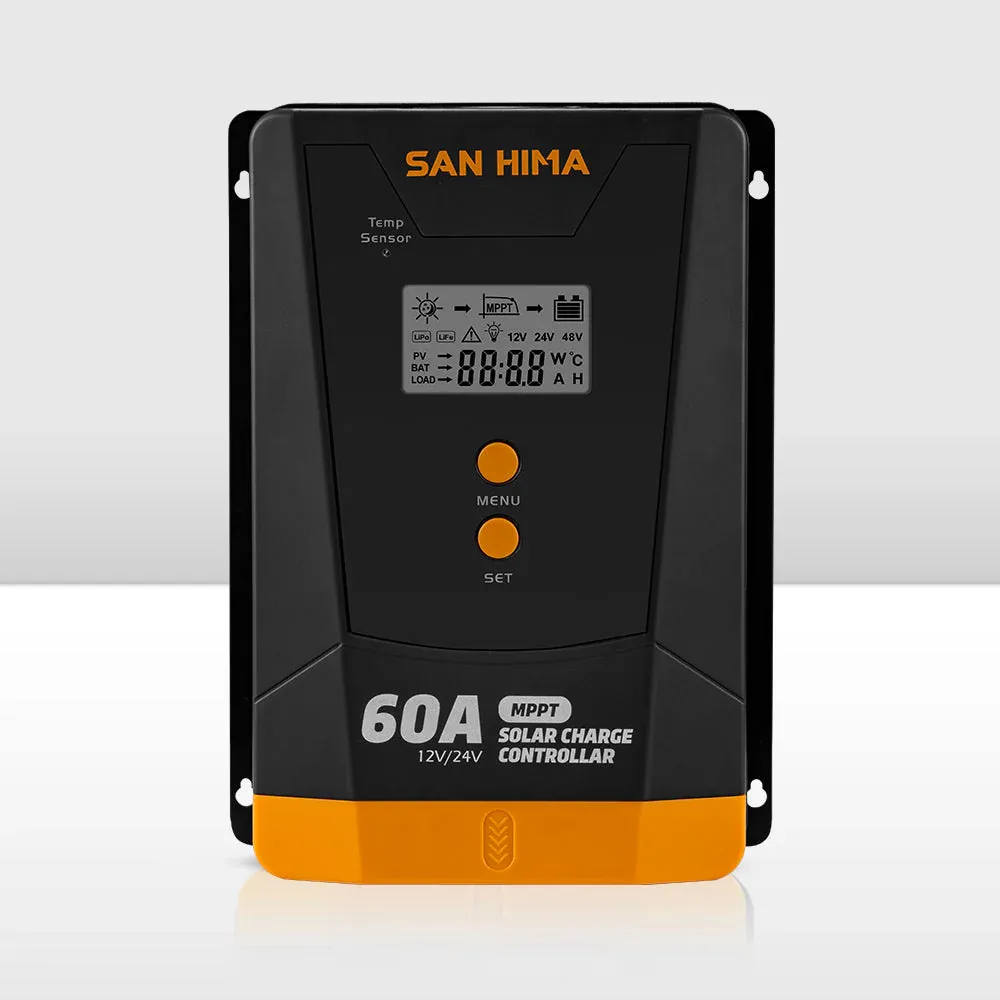

San Hima Solar Charge Controller - 60A MPPT - 12V/24V

Product Details

San Hima 60A MPPT Solar Charge Controller – 12V/24V | Bluetooth | LCD Display

Take control of your solar power system with the San Hima 60A MPPT Solar Charge Controller. Designed for larger caravans, motorhomes, off-grid cabins, 4x4 expedition vehicles, and solar backup systems, this advanced controller maximises solar energy harvest while delivering intelligent battery management and comprehensive system protection.

Featuring advanced Maximum Power Point Tracking (MPPT) technology, the controller achieves an impressive 99.5% tracking efficiency and up to 98% conversion efficiency, ensuring your solar panels operate at their full potential. The built-in Bluetooth module and clear LCD display provide convenient access to real-time system information, allowing you to monitor performance, adjust settings, and optimise your solar installation directly from your smartphone.

Compatible with both 12V and 24V systems, the San Hima 60A MPPT Controller supports a wide range of battery chemistries including lithium-ion, AGM, flooded, gel, and calcium batteries, making it a versatile solution for modern solar power applications.

Features

Advanced MPPT technology delivers up to 99.5% solar tracking efficiency
Peak conversion efficiency of up to 98% maximises charging performance
Built-in Bluetooth connectivity enables remote monitoring and system configuration via smartphone
Large LCD display provides real-time information on charging status, battery condition, and system performance
Automatic 12V and 24V voltage recognition simplifies installation and setup
Supports lithium-ion, AGM, flooded, gel, and calcium battery types
Intelligent multi-stage charging optimises battery performance and lifespan
Automatic lithium battery activation functionality
Integrated temperature sensor provides precise charging temperature compensation
Load output terminals support DC appliances with configurable operating modes
Comprehensive protection against reverse polarity, short circuits, overload, over-temperature, overcharge, over-discharge, and reverse current
Enhanced aluminium heat sinks and integrated cooling fan improve thermal management and charging efficiency
Ideal for larger solar installations requiring higher charging capacity

Specifications
Electrical Specifications

Specification	Details
System Voltage	12V / 24V Auto Recognition
Rated Battery Current	60A
Rated Load Current	30A
Battery Voltage Range	8V – 32V
Maximum Solar Input Voltage	100V
Maximum Solar Input Power (12V System)	780W
Maximum Solar Input Power (24V System)	1,560W
Self Consumption	≤50mA @ 12V/24V
Temperature Compensation	-4mV/°C/2V (25°C)

General Specifications

Specification	Details
Maximum Terminal Size	25mm² (3AWG)
Operating Temperature	-20°C to 55°C
Storage Temperature	-30°C to 80°C
Humidity Range	≤90% Non-Condensing
Enclosure Rating	IP32
Maximum Operating Altitude	3,000m
Certifications	IEC, LVD
Package Dimensions	32 x 23 x 16cm
Gross Weight	2.62kg

What's Included

1 x San Hima 60A MPPT Solar Charge Controller
1 x Mounting Template
1 x User Manual

Ideal Applications

Large caravans and motorhomes
Off-grid cabins and remote properties
4x4 touring and expedition vehicles
Marine and boating systems
Solar backup power installations
Lithium and lead-acid battery banks
High-capacity solar charging systems

Warranty

2-Year Manufacturer's Warranty
