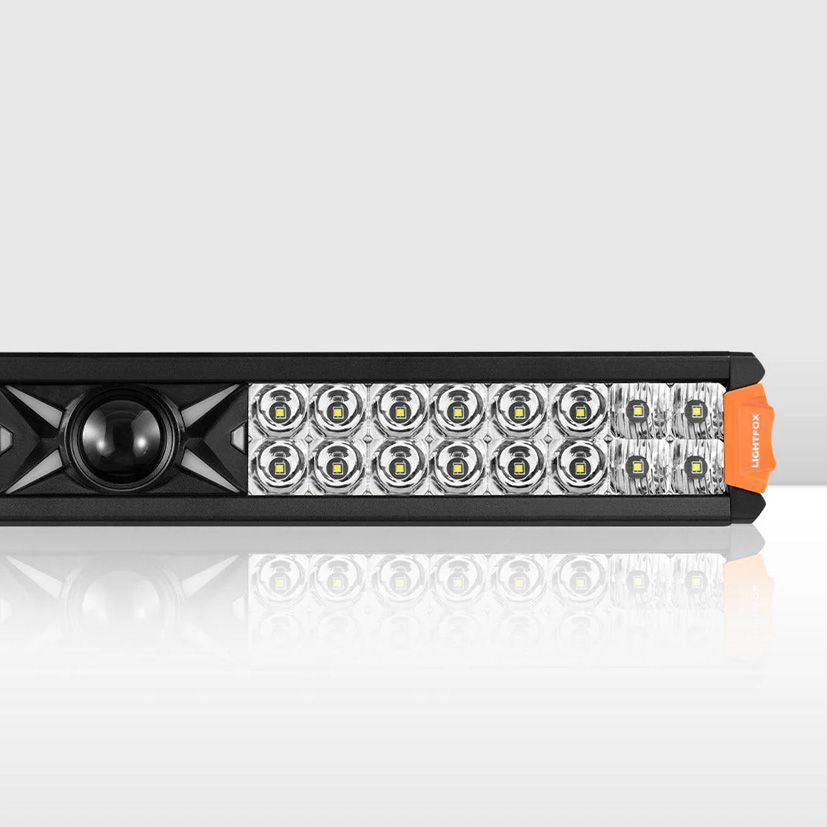

Lightfox Rigel Series 22" Osram Laser LED Light Bar - 9,650 Lumens
SKU LF-LB-LAS22A-VOR
R4 778.26
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
Lightfox Rigel Series 22" Osram Laser LED Light Bar - 9,650 Lumens
Product Details
Lightfox Rigel Series 22" Osram Laser LED Light Bar – 1Lux @ 1,016m | 9,650 Lumens | IP68
When maximum distance matters, the Lightfox Rigel Series 22" Laser LED Light Bar delivers outstanding long-range performance. Featuring advanced Osram Metal Can® Laser technology, this premium light bar projects an incredible 1Lux at 1,016 metres while producing 9,650 lumens of intense illumination. Designed for serious overlanders, 4x4 enthusiasts, commercial vehicles, and expedition rigs, the Rigel Series combines extreme distance with broad flood coverage to provide unmatched visibility in the harshest conditions.
The innovative triple-beam design combines a focused 5° hyperspot laser beam, a 13° spot beam, and a 90° flood beam, giving you exceptional down-road visibility while maintaining excellent peripheral illumination. Built from premium materials and protected by an IP68 waterproof rating, the Rigel Series is engineered to perform reliably through dust, mud, rain, vibration, and extreme temperatures.
Features
- Osram Metal Can® Laser Chip projects an ultra-focused 5° hyperspot beam reaching 1Lux at 1,016 metres
- Vision Drive Technology utilises precision-engineered reflectors for maximum beam efficiency
- Triple-beam configuration combines hyperspot, spot, and flood patterns for superior visibility
- 32 x Osram Oslon LEDs deliver exceptional brightness and performance
- Powerful 9,650-lumen output with an efficient 8.1A current draw
- High-efficiency design producing 99 lumens per watt
- 5,500K pure white light reduces eye strain and improves contrast during night driving
- IP68-rated waterproof and dustproof construction
- Premium AkzoNobel powder-coated housing provides superior UV and corrosion resistance
- Strengthened polycarbonate lens resists scratches, impacts, and harsh off-road conditions
- Dual mounting options for bull bars, nudge bars, roof racks, and custom installations
- Compatible with both 12V and 24V electrical systems
- Reverse polarity protection ensures safe and reliable installation
- Built for extreme operating conditions from -40°C to 150°C
Specifications
| Specification | Details |
|---|---|
| Light Source | Laser & LED |
| Laser Chip | Osram Metal Can® |
| LEDs | 32 x Osram Oslon |
| Raw Lumens | 9,650 Lumens |
| Lux Rating | 1Lux @ 1,016m |
| Colour Temperature | 5,500K |
| Hyperspot Beam | 5° |
| Spot Beam | 13° |
| Flood Beam | 90° |
| Current Draw | 8.1A @ 12V |
| Voltage Compatibility | 12V & 24V |
| Operating Voltage | 10V–30V |
| Housing Material | 6063 Aluminium Alloy |
| Lens Material | Strengthened Polycarbonate |
| Coating | AkzoNobel Powder Coating |
| Side Brackets | Forged Iron |
| Bottom Brackets | Aluminium |
| Sealing Material | UV Resin |
| Waterproof Rating | IP68 |
| Lifespan | 50,000 Hours |
| Operating Temperature | -40°C to 150°C |
| Package Dimensions | 62cm × 9cm × 9.5cm |
| Gross Weight | 2.4kg |
What's Included
- 1 x Lightfox Rigel Series 22" Laser LED Light Bar
- 2 x Side Mounts
- 2 x Bottom Mounts
- 2 Sets of Mounting Hardware
- 4 Pairs of Colour Caps
- 1 x User Manual
Warranty
5-Year Manufacturer's Warranty
