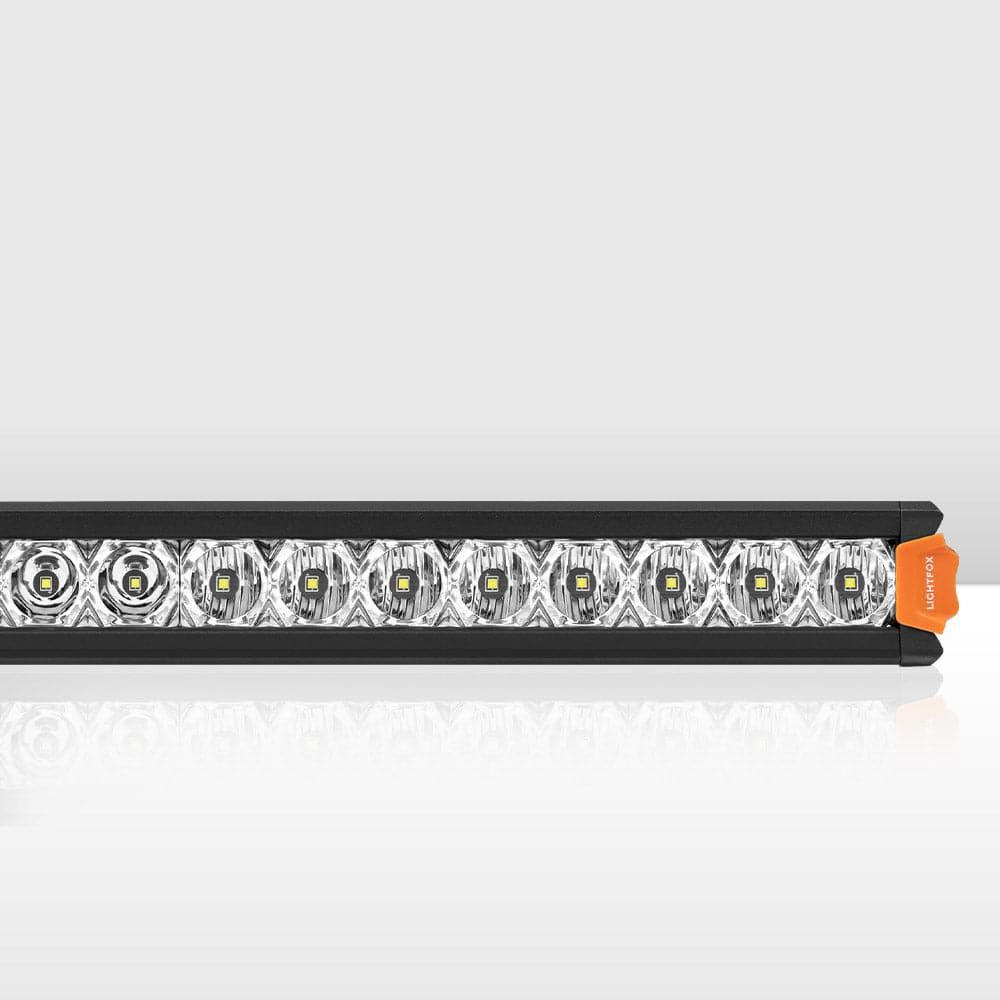

Lightfox Rigel Series 40" Osram LED Light Bar – 30,192 Lumens
Product Details
Lightfox Rigel Series 40" Osram LED Light Bar – 1Lux @ 694m | 30,192 Lumens | IP68
The Lightfox Rigel Series 40" Osram LED Light Bar is built for serious off-road enthusiasts, overlanders, and professionals who demand exceptional night-time visibility in the toughest conditions. Featuring advanced Vision Drive Technology and premium OSRAM OSLON® LEDs, this dual-row light bar produces an incredible 30,192 lumens and projects usable light up to 694 metres at 1Lux.
Combining a focused 13° spot beam with a wide 90° flood beam, the Rigel Series delivers the perfect balance of long-distance reach and broad peripheral coverage. Whether you're navigating remote trails, crossing open terrain, or tackling demanding work environments, this light bar ensures maximum visibility and confidence after dark.
With a crisp 5,500K colour temperature, the light output closely resembles natural daylight while remaining comfortable on the eyes during extended driving sessions. The rugged aluminium housing is protected by AkzoNobel powder coating for superior resistance to corrosion, UV exposure, and harsh environmental conditions. A screwless UV resin front frame and IP68 waterproof rating provide complete protection against dust, mud, water, and heavy washdowns.
Designed for flexible installation, the Rigel Series 40" Light Bar includes both side and bottom mounting options, making it ideal for roof racks, bull bars, nudge bars, canopies, and a wide range of 4x4 applications. Interchangeable colour caps allow you to personalise the appearance of your vehicle while maintaining the premium Lightfox look.
Features
- Vision Drive Technology with curved and metalised reflectors for smooth, efficient beam patterns
- Dual-row combination beam with 13° spot and 90° flood optics
- Massive 30,192-lumen output for outstanding off-road visibility
- 1Lux beam distance of 694 metres
- Premium OSRAM OSLON® LED chips
- Comfortable 5,500K daylight-white colour temperature
- IP68 waterproof and dustproof protection
- AkzoNobel powder-coated aluminium housing
- Anti-scratch strengthened polycarbonate lens
- Built-in breather system prevents condensation
- Protection against flickering and reverse polarity
- Side and bottom mounting options for flexible installation
- Includes interchangeable colour caps for custom styling
- 50,000-hour lifespan
Specifications
| Specification | Details |
|---|---|
| Bulb Type | LED |
| LED Chip | 3W x 80 OSRAM OSLON |
| Theoretical Output | 240W |
| Raw Lumens | 30,192 Lumens |
| Lux Rating | 1Lux @ 694m |
| Colour Temperature | 5,500K |
| Reflector Distribution | 16 Flood + 48 Spot + 16 Flood |
| Spot Beam | 13° |
| Flood Beam | 90° |
| Amp Draw | 13A @ 12V |
| Housing & Heat Sinks | Aluminium |
| Lens | Strengthened Polycarbonate (PC) |
| Coating | AkzoNobel Powder Coating |
| Sealing Material | UV Resin |
| Side Brackets | Forged Iron |
| Bottom Brackets | Aluminium |
| Waterproof Rating | IP68 |
| Expected Lifespan | 50,000 Hours |
| Relative Light Intensity | 78% @ 150°C |
| Operating Temperature | -40°C to 150°C |
| Package Size | 108.5 x 9.5 x 9.5cm |
| Gross Weight | 3.44kg |
Package Includes
- 1 x Lightfox Rigel Series 40" LED Light Bar
- 2 x Side Mounts
- 3 x Bottom Mounts
- 1 x Mounting Hardware Kit
- 4 Pairs of Colour Caps
- 1 x User Manual
Warranty
5-Year Manufacturer's Warranty
