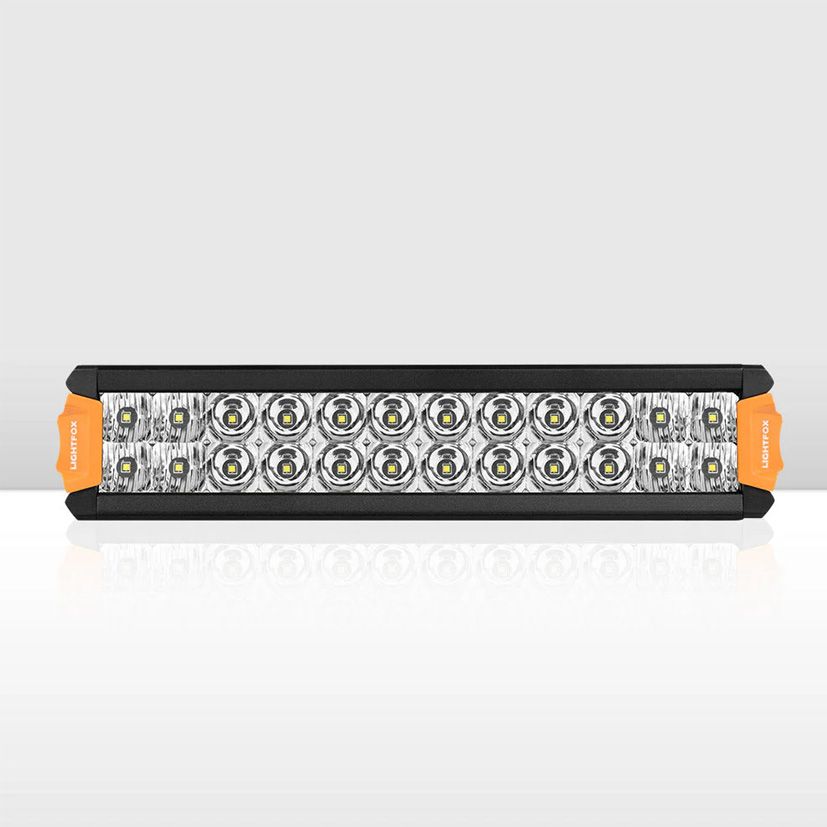

Lightfox Rigel Series 12" Osram LED Light Bar - 8,320 Lumens
SKU LF-LB-12DR-VOR
R2 169.57
Incl.or Excl. Wiring
Please choose
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
Lightfox Rigel Series 12" Osram LED Light Bar - 8,320 Lumens
Product Details
Lightfox Rigel Series 12" Osram LED Light Bar – 1Lux @ 337m | 8,320 Lumens | IP68
The Lightfox Rigel Series 12" Osram LED Light Bar delivers exceptional performance in a compact package, making it the ideal lighting solution for 4x4s, UTVs, work vehicles, and off-road enthusiasts. Featuring advanced Vision Drive Technology and premium OSRAM OSLON® LEDs, this dual-row light bar produces an impressive 8,320 lumens and projects usable light up to 337 metres at 1Lux.
Designed to provide the perfect balance between distance and spread, the Rigel Series combines a focused 13° spot beam with a wide 90° flood beam, ensuring excellent visibility on trails, tracks, work sites, and remote roads. The 5,500K colour temperature delivers a crisp, natural white light that improves visibility while remaining comfortable on the eyes during long night drives.
Built for the harshest environments, the aluminium housing is protected by a durable AkzoNobel powder-coated finish, while the strengthened polycarbonate lens resists scratches and impacts. A screwless UV resin front frame and IP68 waterproof rating provide outstanding protection against dust, water, mud, and harsh weather conditions.
Flexible side and bottom mounting options make installation simple on bull bars, roof racks, bumpers, canopies, and utility vehicles. Included interchangeable colour caps allow you to personalise your lighting setup and match your vehicle's styling.
Features
- Vision Drive Technology for smooth, efficient beam projection
- Dual-row combination beam with 13° spot and 90° flood optics
- Powerful 8,320-lumen output
- 1Lux beam distance of 337 metres
- Premium OSRAM OSLON® LED chips
- Comfortable 5,500K daylight-white colour temperature
- IP68 waterproof and dustproof protection
- AkzoNobel powder-coated aluminium housing
- Strengthened anti-scratch polycarbonate lens
- Integrated breather system prevents condensation
- Reverse polarity and anti-flicker protection
- Side and bottom mounting options for versatile installation
- Includes interchangeable colour caps for custom styling
- Long-life LEDs rated for 50,000 hours
Specifications
| Specification | Details |
|---|---|
| Bulb Type | LED |
| LED Chip | 3W x 24 OSRAM OSLON |
| Theoretical Output | 72W |
| Raw Lumens | 8,320 Lumens |
| Lux Rating | 1Lux @ 337m |
| Colour Temperature | 5,500K |
| Reflector Distribution | 4 Flood + 16 Spot + 4 Flood |
| Spot Beam | 13° |
| Flood Beam | 90° |
| Amp Draw | 3.7A @ 12V |
| Housing & Heat Sinks | Aluminium |
| Lens | Strengthened Polycarbonate (PC) |
| Coating | AkzoNobel Powder Coating |
| Sealing Material | UV Resin |
| Side Brackets | Forged Iron |
| Bottom Brackets | Aluminium |
| Waterproof Rating | IP68 |
| Expected Lifespan | 50,000 Hours |
| Relative Light Intensity | 78% @ 150°C |
| Operating Temperature | -40°C to 150°C |
| Product Dimensions (With Bracket) | 37.8 x 6.5 x 8.2 cm |
| Package Size | 37 x 10 x 9.5 cm |
| Gross Weight | 1.36 kg |
Package Includes
- 1 x Lightfox Rigel Series 12" LED Light Bar
- 2 x Side Mounts
- 2 x Bottom Mounts
- 1 x Mounting Hardware Kit
- 4 Pairs of Colour Caps
- 1 x User Manual
Warranty
5-Year Manufacturer's Warranty
