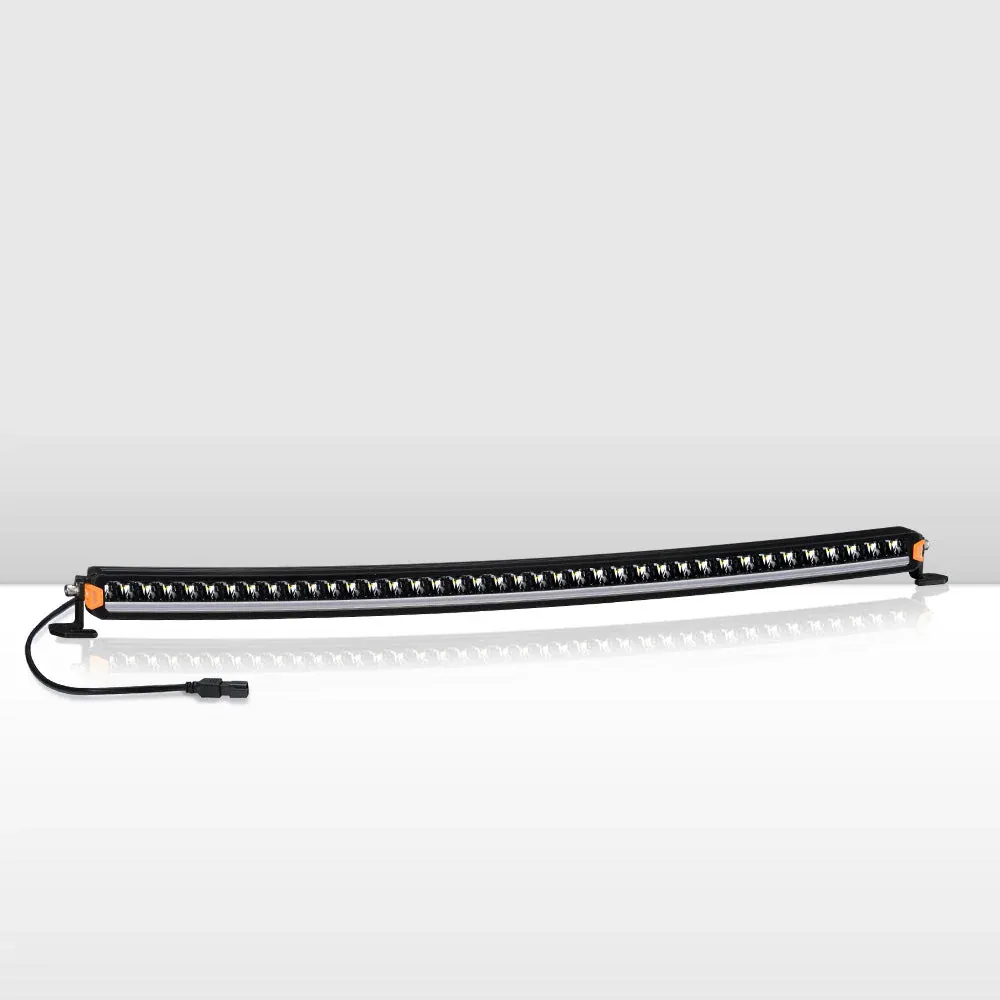

Lightfox 40" Curved LED Light Bar – 18,700 Lumens
SKU LF-LB40-HR-C-excl-wiring-harness
R5 647.83
Sold out
Incl.or Excl. Wiring
Please choose
Sold out
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
Lightfox 40" Curved LED Light Bar – 18,700 Lumens
Product Details
Lightfox 40" Curved LED Light Bar – 1Lux @ 735m | 18,700 Lumens | IP68
Take your night driving visibility to the next level with the Lightfox 40" Curved LED Light Bar. Designed for serious off-road enthusiasts, overlanders, touring vehicles, and work applications, this high-performance curved light bar delivers an impressive 18,700 lumens and projects usable light up to 735 metres at 1Lux.
Featuring Lightfox's advanced Vision Drive Technology, the curved reflector design creates a smooth, wide beam pattern with excellent peripheral coverage, allowing you to see more of the trail, road, or worksite ahead. The integrated white Daytime Running Light (DRL) enhances daytime visibility while adding a modern, premium appearance to your vehicle.
Engineered for harsh environments, the Lightfox Curved LED Light Bar combines a rugged aluminium housing, strengthened polycarbonate lens, UV resin sealing, and an AkzoNobel powder-coated finish to withstand water, dust, mud, UV exposure, and extreme weather conditions. The IP68 waterproof rating ensures dependable performance whether you're crossing rivers, navigating dusty trails, or driving through heavy rain.
Flexible mounting options include both side and bottom brackets, making installation simple on roof racks, bull bars, nudge bars, canopies, and bumper systems. Included interchangeable colour caps allow you to customise the look of your lighting setup to suit your vehicle.
Features
- Vision Drive Technology for superior beam shaping and light distribution
- Powerful 18,700-lumen output
- Long-range performance with 1Lux beam distance of 735 metres
- Curved reflector design for enhanced peripheral visibility
- Integrated white Daytime Running Light (DRL)
- Comfortable 5,500K daylight-white colour temperature
- IP68 waterproof and dustproof protection
- AkzoNobel powder-coated aluminium housing
- Strengthened scratch-resistant polycarbonate lens
- UV resin sealing for maximum weather resistance
- Reverse polarity protection and integrated breather valve
- Efficient heat sink design for optimal cooling
- Side and bottom mounting options included
- Interchangeable colour caps for personalised styling
- Rated lifespan of up to 50,000 hours
Specifications
| Specification | Details |
|---|---|
| Bulb Type | LED |
| LED Chip | High-Performance LEDs |
| Theoretical Output | 190W |
| Raw Lumens | 18,700 Lumens |
| Lux Rating | 1Lux @ 735m (2,411ft) |
| Colour Temperature | 5,500K |
| Housing & Heat Sinks | Aluminium |
| Lens | Strengthened Polycarbonate (PC) |
| Coating | AkzoNobel Powder Coating |
| Sealing Material | UV Resin |
| Side Brackets | Stainless Steel |
| Bottom Bracket A | Stainless Steel |
| Bottom Bracket B | Aluminium |
| Waterproof Rating | IP68 |
| Expected Lifespan | 50,000 Hours |
| Operating Temperature | -40°F to 149°F |
| Dimensions (Side Brackets) | 42.33 x 2.76 x 2.72 in (L x W x H) |
| Dimensions (Bottom Brackets) | 39.69 x 2.95 x 3.06 in (L x W x H) |
| Package Size | 57.1 x 4.13 x 3.15 in (L x W x H) |
| Package Weight | 13.27 lb |
Package Includes
- 1 x Lightfox 40" Curved LED Light Bar
- 1 Pair of Side Mounting Brackets
- 1 Set of Bottom Mounting Brackets
- 1 Set of Mounting Hardware
- 4 Pairs of Colour Caps
- 1 x User Manual
Warranty
5-Year Manufacturer's Warranty
