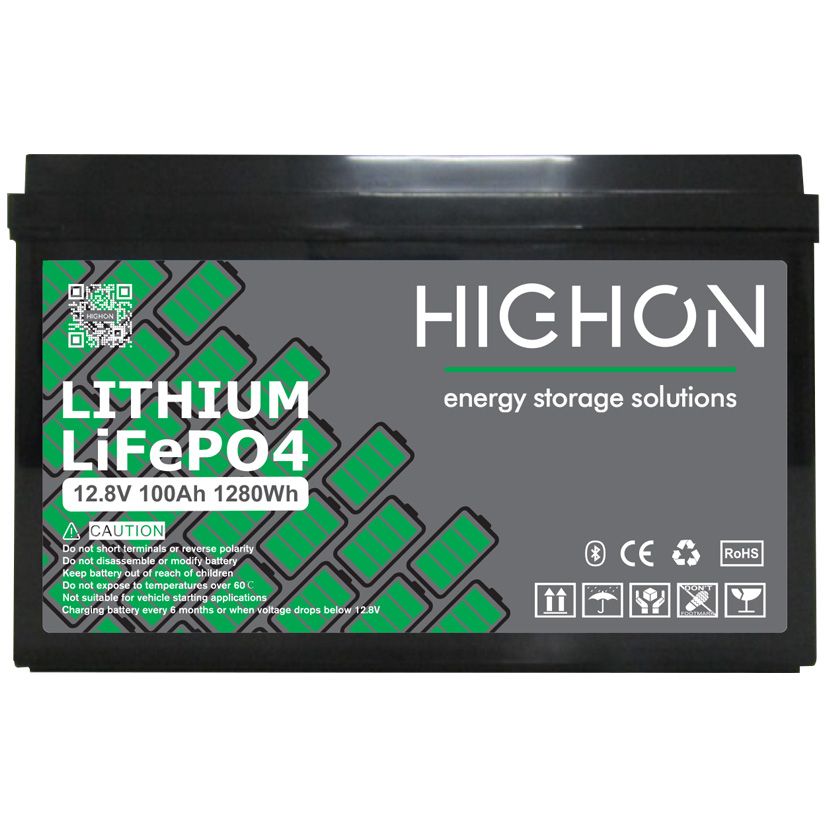

Highon Lithium Battery 100Ah - 12.8V 1280Wh
SKU HIGHON100
R4 520.87
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
Highon Lithium Battery 100Ah - 12.8V 1280Wh
Product Details
[tab name='Product Description']
12.8V 100Ah LiFePO₄ Lithium Battery
Practical power storage for your caravan and camping adventures. This 100Ah lithium iron phosphate battery provides 1,280Wh of energy storage in a compact ABS case. It is suited to compatible caravan and camping power systems where capacity and space matter.
Rated for more than 2,000 cycles at 0.2C and 100% depth of discharge, it is designed for repeated charging and use. The built-in Battery Management System (BMS) provides cell balancing and protection against overcharging, over-discharging, excessive current, short circuits and temperature extremes.
Key Features
- 100Ah capacity with 1,280Wh energy storage
- Lithium iron phosphate — LiFePO₄ cell chemistry
- Rated for more than 2,000 cycles at 0.2C and 100% depth of discharge
- Maximum continuous discharge current of 100 A
- Maximum pulse discharge current of 200 A for less than three seconds
- Maximum charging current of 50 A
- Built-in BMS with cell balancing and protection functions
- ABS plastic case
- IP56 dust and water resistance
- M8 terminals
- 3-year warranty
[tab name='Specifications']
Electrical Specifications
| Specification | Details |
|---|---|
| Nominal voltage | 12.8 V |
| Nominal capacity | 100 Ah |
| Energy storage | 1,280 Wh |
| Internal resistance | ≤20 mΩ |
| Cycle life | >2,000 cycles at 0.2C, 100% depth of discharge |
| Monthly self-discharge | <3% |
| Charge efficiency | 100% at 0.5C |
| Discharge efficiency | 96–99% at 1C |
Charging Specifications
| Specification | Details |
|---|---|
| Charging voltage | 14–14.6 V |
| Specified charging current | 20 A |
| Maximum charging current | 50 A |
| Charge cut-off voltage | 15.6 V ±0.2 V |
| Charging method | Constant current at 0.2C to 14.6 V, followed by constant voltage at 14.6 V until current falls below 0.02C |
Discharge Specifications
| Specification | Details |
|---|---|
| Maximum continuous current | 100 A |
| Maximum pulse current | 200 A for <3 seconds |
| Discharge cut-off voltage | 8 V |
Operating & Storage Conditions
| Specification | Details |
|---|---|
| Charging temperature | 0°C to 45°C |
| Discharging temperature | -20°C to 60°C |
| Storage temperature | 0°C to 40°C |
| Relative humidity | 60% ±25% |
| Dust and water resistance | IP56 |
Mechanical Specifications
| Specification | Details |
|---|---|
| Cell chemistry | LiFePO₄ |
| Case material | ABS plastic |
| Dimensions | 327 × 172 × 218 mm |
| Weight | 13.5 kg |
| Terminal size | M8 |
BMS Protection
- Overcharge protection
- Over-discharge protection
- Overcurrent protection
- Short-circuit protection
- Cell balancing
- Temperature protection
Installation Note
Use a LiFePO₄-compatible charger and confirm that your caravan’s charging system matches the battery’s requirements. The specified charging voltage is 14–14.6 V; the cut-off voltages are protection limits, not normal operating targets.
[tab name='Downloads']
[endtab]
You May Also Like
On Sale

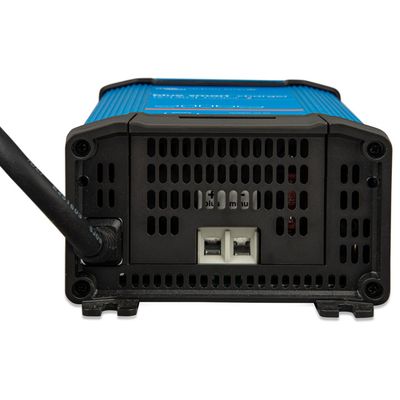

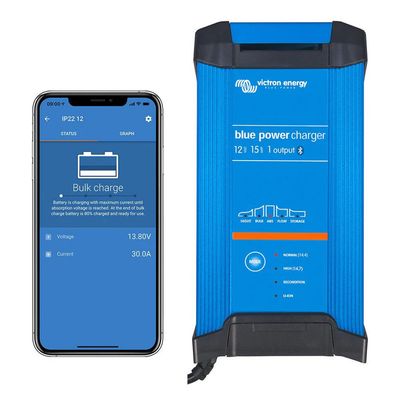

Victron Blue Smart IP22 Charger 12/15 (1)
Victron Blue Smart IP22 Charger 12/15 (1)
SKU BPC121542002
was R2 489.57
R1 955.65
On Sale

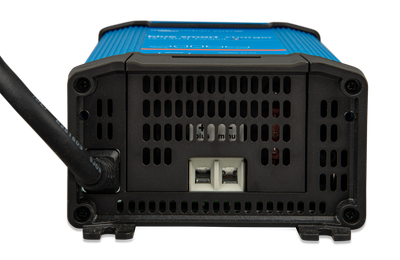

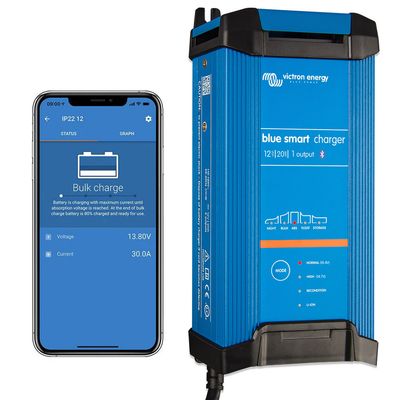

Victron Blue Smart IP22 Charger 12/20 (1)
Victron Blue Smart IP22 Charger 12/20 (1)
SKU BPC122042002
was R2 981.74
R2 323.48
On Sale

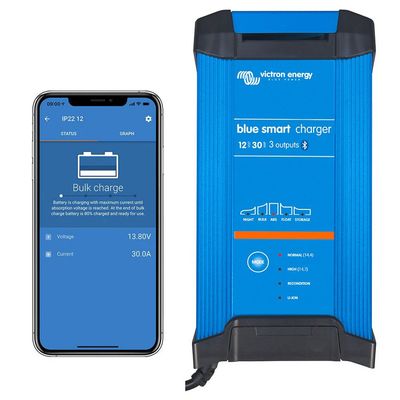

Victron Blue Smart IP22 Charger 12/30 (1)
Victron Blue Smart IP22 Charger 12/30 (1)
SKU BPC123047002
was R3 577.39
R2 782.61
On Sale

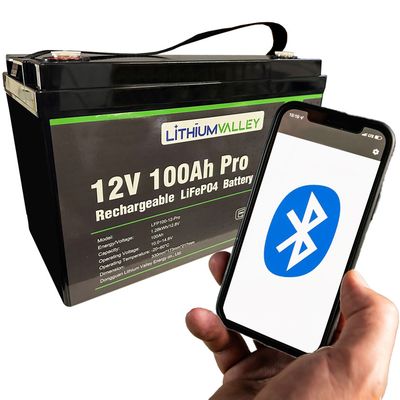

Lithium Valley 12.8V 100AH LiFePO4 Battery
