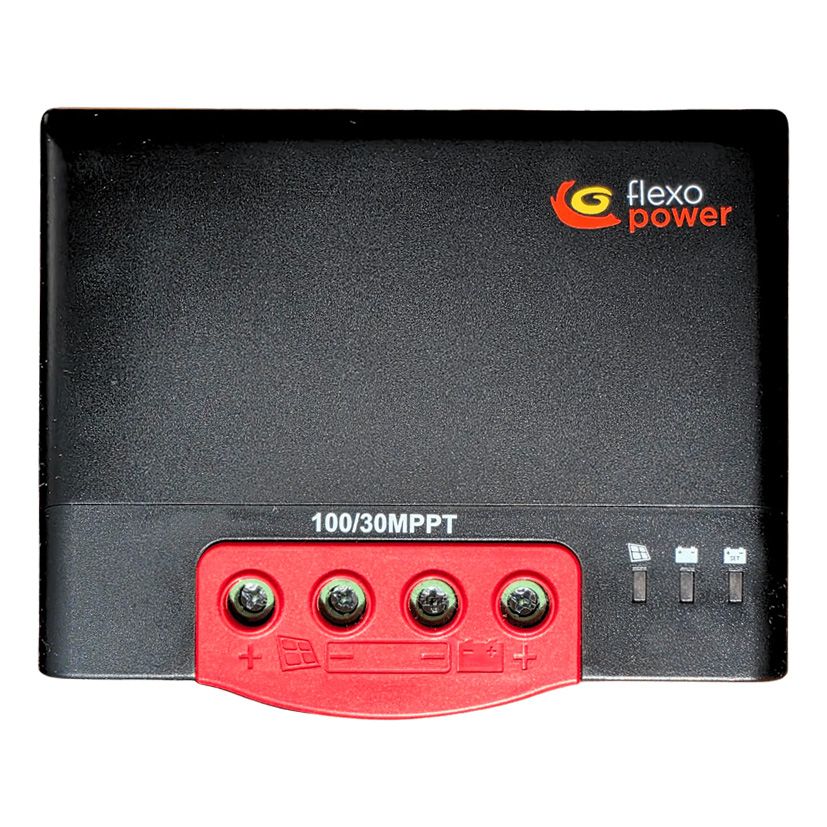

Flexopower FlexoTrack 30A MPPT Solar Charge Controller
SKU FLEX100/30A
R1 651.30
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
Flexopower FlexoTrack 30A MPPT Solar Charge Controller
Product Details
Flexopower FlexoTrack 30A MPPT Solar Charge Controller
Smart, Efficient Solar Charging for Reliable Off-Grid Power
The Flexopower FlexoTrack 30A MPPT Solar Charge Controller is designed to maximize the performance of your solar power system, delivering efficient battery charging and intelligent power management for camping, caravanning, overlanding, and off-grid applications.
Featuring advanced Maximum Power Point Tracking (MPPT) technology with up to 99.5% tracking efficiency, the FlexoTrack 30A continuously optimizes power output from your solar panels, ensuring you harvest every available watt of solar energy. Whether you're powering a weekend camping setup or a permanent off-grid system, this controller provides reliable charging and comprehensive battery protection.
With support for 12V and 24V battery systems, a wide 100V solar input range, and compatibility with LiFePO4, AGM, Gel, and Flooded batteries, the FlexoTrack 30A offers exceptional flexibility for a wide range of solar installations.
Key Features
- Advanced MPPT solar charging technology
- Up to 99.5% MPPT tracking efficiency
- Up to 98% conversion efficiency
- 30A maximum charging current
- Automatic 12V / 24V system voltage detection
- Supports solar panel input up to 100V DC
- Compatible with LiFePO4, AGM, Gel, and Flooded batteries
- Comprehensive battery protection systems
- Compact and rugged design
- Low self-consumption
- Natural convection cooling
- Optional communication capability (RS485 / Bluetooth depending on configuration)
- Ideal for mobile and off-grid solar applications
- Backed by a 3-Year Warranty
Advanced MPPT Technology
Unlike conventional PWM controllers, MPPT technology continuously tracks the optimal operating point of your solar panels, significantly improving charging efficiency and energy harvest.
Benefits of MPPT Charging
- Faster battery charging
- Higher solar energy yield
- Improved performance in changing weather conditions
- Better efficiency during low-light periods
- Maximum use of available solar power
With an impressive 99.5% tracking efficiency, the FlexoTrack ensures your batteries receive the maximum available energy from your solar array.
Flexible Solar System Design
The controller supports a maximum solar input voltage of 100V DC, allowing greater flexibility when designing your solar installation.
Maximum Solar Power Input
12V Battery Systems
- Up to 400W solar input
24V Battery Systems
- Up to 800W solar input
The higher input voltage capability allows longer cable runs and more versatile solar panel configurations.
Wide Battery Compatibility
The FlexoTrack 30A is compatible with most popular battery technologies, making it suitable for a wide range of power systems.
Supported Battery Types
- LiFePO4 (Lithium Iron Phosphate)
- AGM
- Gel
- Flooded Lead Acid
This flexibility allows easy integration into existing systems or future battery upgrades.
Comprehensive Protection
Built-in electronic protection systems help safeguard both your batteries and solar equipment.
Protection Features
- Overcharge Protection
- Over-discharge Protection
- Short Circuit Protection
- Reverse Polarity Protection
- Over-temperature Protection
These advanced safety features ensure reliable operation in demanding outdoor environments.
Built for Mobile & Off-Grid Applications
The compact, durable design makes the FlexoTrack 30A ideal for:
- 4x4 and overlanding vehicles
- Camping power systems
- Caravans and motorhomes
- Off-road trailers
- Small off-grid cabins
- Backup power installations
- Portable solar systems
Natural convection cooling eliminates the need for fans, reducing noise and increasing reliability.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Flexopower 30/100 MPPT |
| Rated Charge Current | 30A |
| System Voltage | 12V / 24V Auto Detection |
| Maximum PV Input Voltage | 100V DC |
| MPPT Tracking Efficiency | ≥ 99.5% |
| Conversion Efficiency | ≥ 98% |
| Battery Types | LiFePO4 / AGM / Gel / Flooded |
| Maximum PV Power (12V) | 400W |
| Maximum PV Power (24V) | 800W |
| Self Consumption | ≤ 10mA |
| Operating Temperature | -20°C to +50°C |
| Cooling Method | Natural Convection |
| Communication | Optional RS485 / Bluetooth |
| Dimensions | 150 x 106 x 68mm |
| Weight | 0.83kg |
| Warranty | 3 Years |
What's in the Box
- Flexopower FlexoTrack 30A / 100V MPPT Solar Charge Controller
- User Manual
Ideal Applications
- Overlanding & 4x4 Solar Systems
- Caravan & Motorhome Solar Installations
- Camping Power Solutions
- Trailer Solar Setups
- Portable Solar Systems
- Backup Power Systems
- Small Off-Grid Installations
Installation Notes
For safe and reliable operation, please follow these installation guidelines:
- Always connect the battery to the charge controller before connecting the solar panels.
- Ensure the total solar panel input voltage does not exceed 100V DC.
- Use correctly sized cables and appropriate fusing for both the battery and solar connections.
- Install the controller in a well-ventilated area away from direct heat sources.
- Double-check polarity before making connections to prevent damage to the controller.
- Refer to the user manual for detailed installation and wiring instructions.
Following these recommendations will help ensure maximum performance, safety, and long-term reliability of your solar charging system.
Why Choose the Flexopower FlexoTrack 30A MPPT?
Designed by a trusted South African off-grid power specialist, the Flexopower FlexoTrack 30A MPPT Solar Charge Controller delivers exceptional efficiency, advanced battery protection, and reliable performance in a compact package. With support for modern lithium batteries, high-voltage solar arrays, and mobile power systems, it's the ideal choice for anyone looking to maximize the performance of their solar installation.
