14A IP68 Ecoterm Solar Regulator by Phocos
Product Details

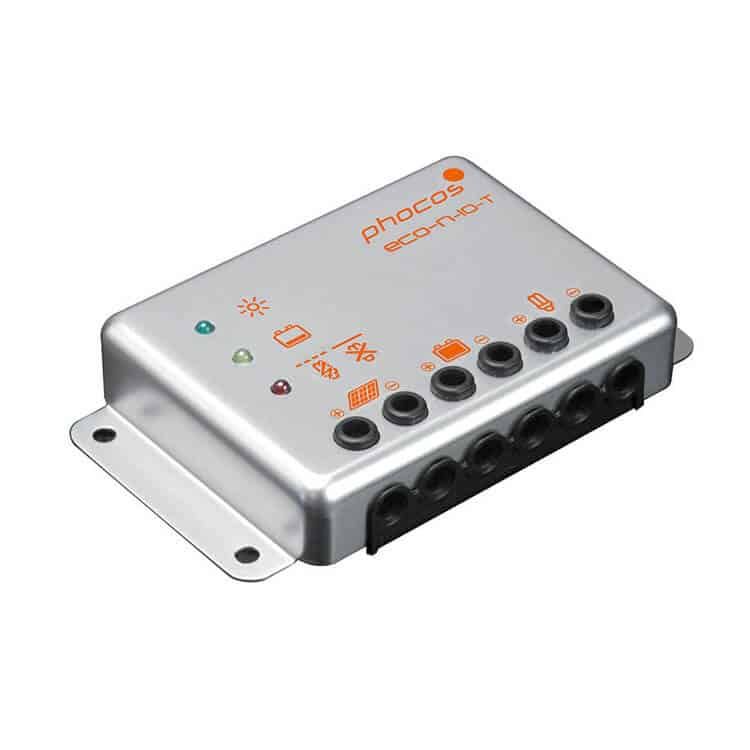

14A IP68 Ecoterm Solar Regulator by Phocos
Compact, Reliable Solar Charging for Outdoor & Mobile Power Systems
The Ecoterm 14A Solar Regulator by Phocos is a high-quality PWM solar charge controller designed to provide reliable battery charging and protection for 12V solar systems. Engineered in Germany and built to withstand harsh outdoor conditions, the Ecoterm is an excellent choice for camping, caravans, trailers, remote installations, and off-grid applications.
Featuring an IP68-rated housing, the Ecoterm offers exceptional protection against water and dust ingress, making it ideal for demanding outdoor environments. Designed specifically for lead-acid batteries, including AGM, Gel, and Flooded battery types, this compact regulator ensures efficient charging while protecting your battery from overcharging, deep discharge, and voltage-related damage.
Perfectly suited for use with Namib solar panels and other 12V solar systems, the Ecoterm combines proven Phocos reliability with simple, maintenance-free operation.
Key Features
- German-engineered quality
- IP68 waterproof and dustproof housing
- Designed for 12V solar systems
- Maximum charge current: 14A
- PWM charging technology
- Compatible with AGM, Gel, and Flooded lead-acid batteries
- Automatic battery protection functions
- Extremely low self-consumption
- Compact and lightweight design
- RoHS compliant
- 2-Year Manufacturer Warranty
Reliable Battery Protection
The Ecoterm continuously monitors battery voltage and charging conditions to help maximize battery life and system reliability.
Protection Features
- Overcharge Protection
- Deep Discharge Protection
- Overvoltage Protection
- Undervoltage Protection
- Automatic Battery Charging Management
- Temperature Compensation
These built-in safeguards help ensure your battery remains protected in a variety of operating conditions.
Optimised Charging Performance
The regulator utilizes a multi-stage PWM charging process to maintain healthy battery performance and maximize service life.
Charging Parameters
- Main Charge Voltage: 14.4V
- Boost Charge Voltage: 14.4V
- Float Charge Voltage: 13.8V
- Deep Discharge Protection: 11.0V
- Overvoltage Protection: 15.5V
- Undervoltage Protection: 10.5V
Automatic temperature compensation further improves charging accuracy across varying environmental conditions.
Built for Harsh Conditions
Designed for outdoor and mobile applications, the Ecoterm is built to handle demanding environments.
Environmental Specifications
- IP68 Housing Protection
- Operating Temperature: -40°C to +60°C
- Maximum Altitude: 4,000m Above Sea Level
- Positive Ground System
- Rugged Compact Construction
Its sealed design makes it ideal for exposed installations where moisture, dust, and vibration are common.
Technical Specifications
| Specification | Details |
|---|---|
| System Voltage | 12V |
| Maximum Charge Current | 14A |
| Charging Technology | PWM |
| Float Charge Voltage | 13.8V |
| Main Charge Voltage | 14.4V |
| Boost Charge Voltage | 14.4V |
| Deep Discharge Protection | 11.0V |
| Overvoltage Protection | 15.5V |
| Undervoltage Protection | 10.5V |
| Maximum PV Open Circuit Voltage (Voc) | 30V |
| Temperature Compensation | -4.2mV/K (2V Cell) |
| Idle Self Consumption | 4mA |
| Battery Compatibility | AGM, Gel, Flooded Lead-Acid |
| Maximum Cable Size | 10mm² |
| Operating Temperature | -40°C to +60°C |
| Maximum Altitude | 4,000m |
| Protection Rating | IP68 (Housing), IP21 (Contacts) |
| Dimensions | 100 x 61 x 20mm |
| Weight | 160g |
Installation Notes
- Suitable for 12V lead-acid battery systems only.
- Compatible with AGM, Gel, and Flooded batteries.
- Always connect the battery before connecting the solar panel.
- Ensure the solar panel open-circuit voltage (Voc) does not exceed 30V.
- Use appropriately sized cables and fuses for your installation.
- Install in accordance with the user manual and local electrical regulations.
Ideal Applications
- Camping Solar Systems
- Caravan & Motorhome Solar Installations
- Off-Road Trailer Power Systems
- Remote Monitoring Stations
- Small Off-Grid Solar Systems
- Namib Solar Panel Installations
- Agricultural & Utility Applications
What's in the Box
- 1 x Phocos Ecoterm 14A Solar Regulator
- User Documentation
Why Choose the Phocos Ecoterm 14A?
The Phocos Ecoterm 14A combines German engineering, proven PWM charging technology, and exceptional environmental protection in a compact package. With its IP68-rated housing, low power consumption, and comprehensive battery protection features, it's the ideal solar regulator for reliable off-grid power in demanding outdoor environments.
