Lightfox Rigel Series 20" Osram LED Light Bar – 15,096 Lumens
SKU LF-LB-20DR-VOR
R2 865.22
Incl.or Excl. Wiring
Please choose
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later

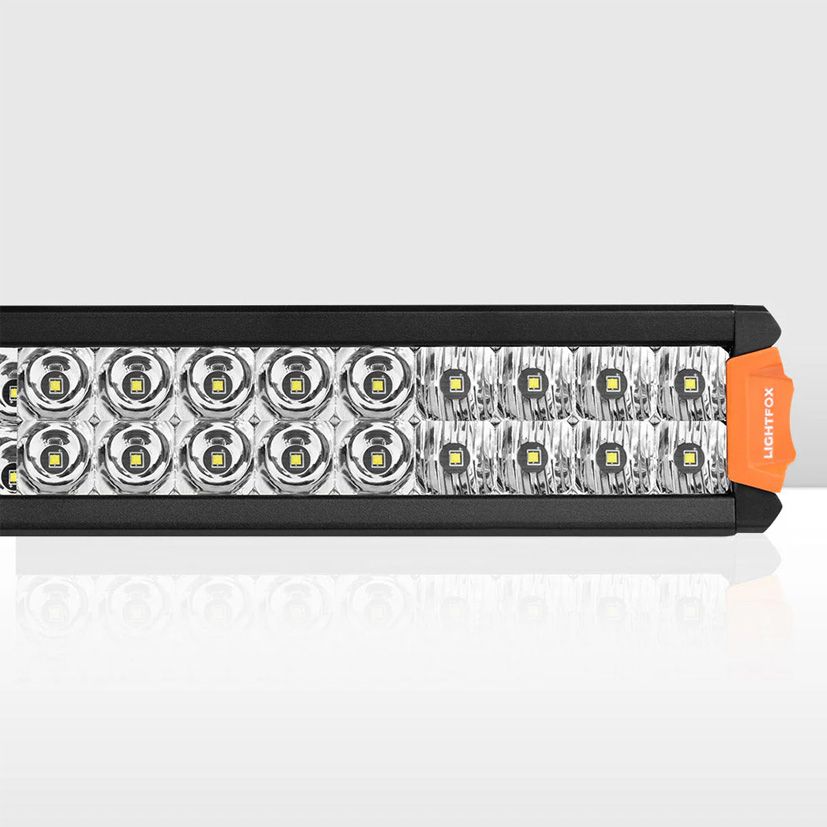

Lightfox Rigel Series 20" Osram LED Light Bar – 15,096 Lumens
Product Details
Lightfox Rigel Series 20" Osram LED Light Bar – 15,096 Lumens | 1Lux @ 509m | IP68 Waterproof
Short Description
Built for drivers who demand maximum visibility, the Lightfox Rigel Series 20" Osram LED Light Bar delivers an impressive 15,096 lumens with a powerful combination of 13° spot and 90° flood beams. Featuring premium OSRAM OSLON® LEDs, Vision Drive Technology, dual-row performance, and rugged IP68 protection, this light bar is ideal for 4x4s, overlanding vehicles, work trucks, and marine applications.
Product Description
Light up the darkest tracks, trails, and work environments with the Lightfox Rigel Series 20" Osram LED Light Bar. Engineered for superior performance and reliability, this high-output dual-row light bar combines advanced optics, premium components, and rugged construction to deliver exceptional visibility in all conditions.
Powered by 40 premium OSRAM OSLON® LEDs, the Rigel Series produces an impressive 15,096 lumens while projecting a highly effective beam pattern reaching 509 metres at 1 Lux. The innovative dual-row reflector design combines a focused 13° spot beam with wide 90° flood beams, providing both long-range visibility and broad peripheral illumination.
At the heart of the Rigel Series is Vision Drive Technology, which uses curved and metallised reflectors to maximise light harvesting, reduce light loss, and create smooth, clean beam patterns. This advanced optical design delivers excellent visibility on remote trails, gravel roads, construction sites, farms, and marine environments.
The 5,500K colour temperature produces a crisp white light with a slightly warmer tone, improving contrast and reducing eye fatigue during extended night driving while maintaining excellent visibility in all weather conditions.
Designed for harsh environments, the Rigel Series features a durable aluminium housing protected by AkzoNobel powder coating for superior resistance to corrosion, UV exposure, and environmental wear. The strengthened polycarbonate lens and screwless UV resin-sealed front frame provide complete IP68-rated protection against dust, mud, water ingress, and heavy washdowns.
Integrated heat sinks ensure efficient cooling and contribute to an impressive 50,000-hour lifespan, while the built-in breather system prevents condensation buildup inside the housing. Electronic protection systems guard against reverse polarity and flickering for reliable performance wherever your journey takes you.
With both side-mount and bottom-mount brackets included, the Rigel Series offers exceptional installation flexibility for bull bars, nudge bars, roof racks, sports bars, trailers, boats, and utility vehicles. Interchangeable colour caps allow you to customise the appearance to suit your vehicle's style.
Features
- Premium OSRAM OSLON® LED technology
- Massive 15,096 lumen output
- Long-range beam distance of 509m at 1 Lux
- Dual-row lighting configuration
- Combination 13° spot beam and 90° flood beam pattern
- Advanced Vision Drive Technology
- Curved and metallised reflector design
- Comfortable 5,500K colour temperature
- Heavy-duty aluminium housing
- Strengthened polycarbonate lens
- AkzoNobel powder-coated finish
- Integrated heat sink cooling system
- Built-in breather prevents condensation
- Reverse polarity and anti-flicker protection
- IP68 waterproof and dustproof rating
- Side and bottom mounting options included
- Interchangeable colour caps included
- Suitable for 4x4s, work vehicles, marine applications, trailers, and overlanding setups
Technical Specifications
| Specification | Details |
|---|---|
| Bulb Type | LED |
| LED Chip | 3W x 40 OSRAM OSLON® LEDs |
| Theoretical Output | 120W |
| Housing & Heat Sinks | Aluminium |
| Lens Material | Strengthened Polycarbonate (PC) |
| Coating | AkzoNobel Powder Coating |
| Sealing Material | UV Resin |
| Side Brackets | Forged Iron |
| Bottom Brackets | Aluminium |
| Raw Lumens | 15,096 Lumens |
| Lux Rating | 1Lux @ 509m |
| Colour Temperature | 5,500K |
| Reflector Distribution | 8 Flood + 24 Spot + 8 Flood |
| Spot Beam Angle | 13° |
| Flood Beam Angle | 90° |
| Amp Draw | 6.5A @ 12V |
| Waterproof Rating | IP68 Rated |
| Expected Lifespan | 50,000 Hours |
| Relative Light Intensity | 78% @ 150°C (302°F) |
| Operating Temperature | -40°C to 150°C (-40°F to 302°F) |
| Package Dimensions | 37 x 9.5 x 10 cm |
| Gross Weight | 1.94 kg |
Package Includes
- 1 x Lightfox Rigel Series 20" LED Light Bar
- 2 x Side Mounting Brackets
- 2 x Bottom Mounting Brackets
- Complete Mounting Hardware Kit
- 4 Pairs of Interchangeable Colour Caps
- User Manual
Warranty
The Lightfox Rigel Series 20" Osram LED Light Bar is backed by a comprehensive 5-Year Warranty, ensuring dependable performance and peace of mind on every adventure.
