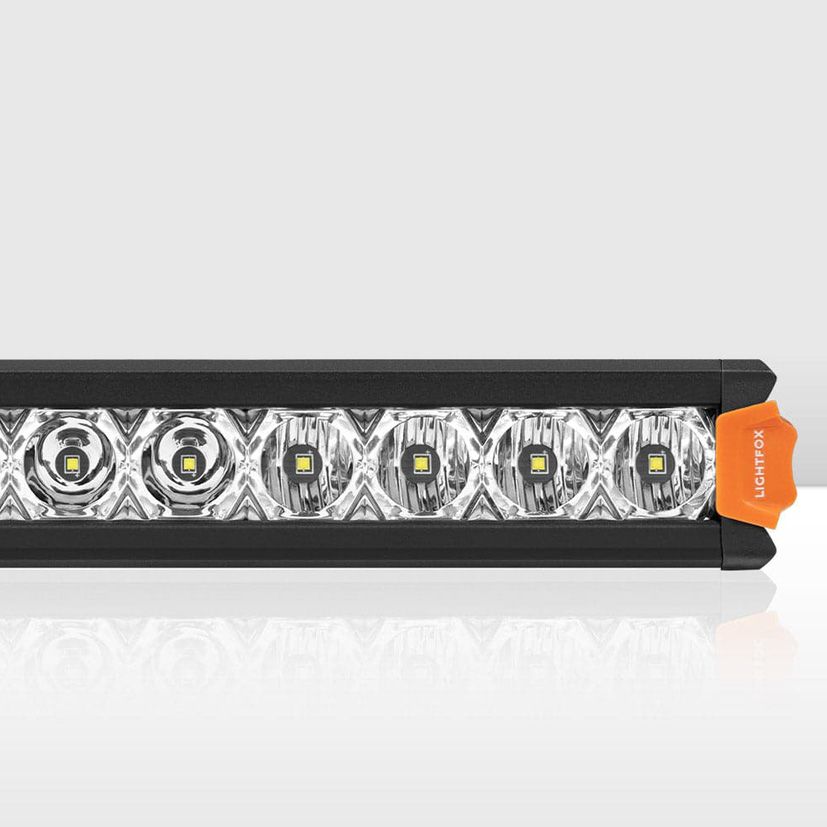

Lightfox Vega Series 20" Osram LED Light Bar – 12,580 Lumens
SKU LF-LB-20SR-VOR
R2 343.48
Incl.or Excl. Wiring
Please choose
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
Lightfox Vega Series 20" Osram LED Light Bar – 12,580 Lumens
Product Details
Lightfox Vega Series 20" Osram LED Light Bar – 12,580 Lumens | 1Lux @ 453m | IP68 Waterproof
Short Description
The Lightfox Vega Series 20" Osram LED Light Bar combines powerful long-range illumination with wide-angle coverage, delivering 12,580 lumens and a beam distance of 453m at 1 Lux. Featuring premium OSRAM OSLON® LEDs, Vision Drive Technology, a hybrid spot and flood beam pattern, and IP68-rated durability, this light bar is built for serious off-road adventures and demanding working environments.
Product Description
Take control of the darkness with the Lightfox Vega Series 20" Osram LED Light Bar, engineered to deliver exceptional visibility, durability, and versatility for off-road enthusiasts, overlanders, and adventure seekers.
Powered by premium OSRAM OSLON® LEDs, this high-performance 20-inch light bar produces an impressive 12,580 lumens while projecting light up to 453 metres at 1 Lux. The advanced single-row design combines a focused 13° spot beam with wide-angle 60° flood beams, delivering outstanding long-distance visibility while maintaining excellent peripheral coverage.
At the core of the Vega Series is Lightfox's Vision Drive Technology, utilising curved and metallised reflectors to maximise light harvesting, improve beam efficiency, and create a clean, smooth beam pattern with minimal light scatter. The result is superior visibility on remote trails, gravel roads, work sites, and long-distance touring routes.
The warm 5,500K colour temperature provides crisp white illumination with reduced glare and eye fatigue, making it ideal for extended night-time driving while maintaining excellent contrast and terrain visibility.
Built to withstand the harshest conditions, the Vega Series features a robust aluminium housing protected by premium AkzoNobel powder coating, offering excellent resistance to corrosion, UV exposure, and environmental wear. The strengthened polycarbonate lens and screwless UV resin-sealed front frame provide complete IP68 protection against dust, mud, water, and heavy washdowns.
A built-in breather system prevents condensation buildup, while integrated electronics protect against reverse polarity and flickering, ensuring reliable performance in all conditions.
Designed for installation flexibility, the Vega Series includes both side-mount and bottom-mount brackets, making it suitable for bull bars, roof racks, canopies, sports bars, trailers, and other mounting locations where space may be limited.
For a personalised appearance, interchangeable colour caps in Yellow, Orange, Grey, Black, and Red allow you to customise your setup and match your vehicle's styling.
Features
- Premium OSRAM OSLON® LED technology
- Powerful 12,580 lumen output
- Long-range beam distance of 453m at 1 Lux
- Combination 13° spot beam and 60° flood beam pattern
- Advanced Vision Drive Technology
- Curved and metallised reflector system
- Comfortable 5,500K colour temperature
- Single-row low-profile design
- Heavy-duty aluminium housing
- Strengthened polycarbonate lens
- AkzoNobel powder-coated finish
- Built-in breather system prevents condensation
- Reverse polarity and anti-flicker protection
- IP68 waterproof and dustproof rating
- Side and bottom mounting options included
- Customisable colour caps included
- Ideal for off-road, overlanding, touring, agricultural, and commercial applications
Technical Specifications
| Specification | Details |
|---|---|
| Bulb Type | LED |
| LED Chip | 5W x 20 OSRAM OSLON® LEDs |
| Theoretical Output | 100W |
| Housing & Heat Sinks | Aluminium |
| Lens Material | Strengthened Polycarbonate (PC) |
| Coating | AkzoNobel Powder Coating |
| Sealing Material | UV Resin |
| Side Brackets | Forged Iron |
| Bottom Brackets | Aluminium |
| Raw Lumens | 12,580 Lumens |
| Lux Rating | 1Lux @ 453m |
| Colour Temperature | 5,500K |
| Reflector Distribution | 4 Flood + 12 Spot + 4 Flood |
| Spot Beam Angle | 13° |
| Flood Beam Angle | 60° |
| Amp Draw | 6.2A @ 12V |
| Waterproof Rating | IP68 Rated |
| Expected Lifespan | 50,000 Hours |
| Relative Light Intensity | 78% @ 150°C (302°F) |
| Operating Temperature | -40°C to 150°C (-40°F to 302°F) |
| Package Dimensions | 62 x 7.5 x 7.5 cm |
| Gross Weight | 1.3 kg |
Package Includes
- 1 x Lightfox Vega Series 20" LED Single Row Light Bar
- 2 x Side Mounting Brackets
- 2 x Bottom Mounting Brackets
- Complete Mounting Hardware Kit
- 4 Pairs of Interchangeable Colour Caps
- User Manual
Warranty
The Lightfox Vega Series 20" Osram LED Light Bar is backed by a comprehensive 5-Year Warranty, ensuring reliable performance and peace of mind wherever your adventures take you.
