HD Wireless Camera System with 5” Monitor and Magnetic Mount Camera with Battery Pack
Product Details
[tab name='Product Description']

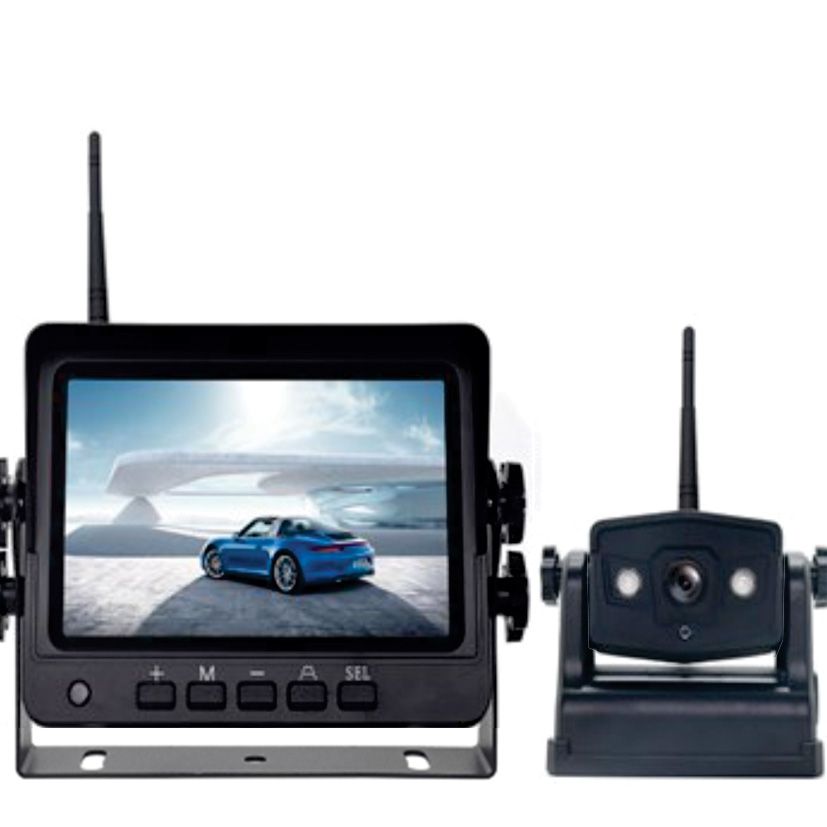

HD Wireless Camera System with 5″ Monitor & Magnetic Battery Camera
Flexible camera positioning for confident reversing and manoeuvring.
Improve rear visibility with this HD Wireless Camera System, featuring a 5″ monitor and a magnetic-mount camera with a built-in 9,600mAh battery. Ideal for caravans, trailers, bakkies and trucks, the battery-powered camera offers convenient positioning without a permanent camera power connection.
The magnetic base attaches to a suitable steel surface, making the camera easy to reposition between compatible mounting points. View the camera feed on the supplied monitor, with support for an additional camera and manual switching between views.
Add an additional camera by selecting the option from the side menu.
Monitor Features
- 5″ colour display: 800 × 480 screen resolution with AHD 720p support.
- Two-camera support: Manually switch between up to two connected cameras.
- Automatic PAL/NTSC adaptation: Accommodates either video format.
- 2.4GHz digital receiver: Receives wireless video from the camera.
- Long-range transmission: Up to 400 metres in unobstructed conditions.
- 12–24V DC input: Suitable for compatible vehicle electrical systems.
- Suction-cup mount included: Convenient mounting for the monitor.
Camera Features
- Built-in 9,600mAh battery: Powers the camera without a permanent vehicle power connection.
- Magnetic mounting base: Attaches to suitable steel surfaces for quick positioning.
- 1/3″ colour CMOS sensor: Provides clear colour images.
- 115° viewing angle: Offers broad coverage behind your vehicle.
- Low-light capability: Minimum illumination of 1 lux.
- 2.4GHz digital transmitter: Sends video wirelessly to the monitor.
- IP68-rated camera: Protection against dust and water ingress.
- 10G vibration resistance: Suited to demanding vehicle applications.
Installation & Use
Connect the monitor to a suitable 12–24V DC supply, charge the camera battery and position the camera on a clean, suitable steel surface. Check that the camera is securely attached before use.
Wireless range varies with vehicle construction, obstructions and interference. Battery runtime depends on usage and operating conditions. The IP68 rating applies to the camera.
Use the camera alongside your mirrors and direct observation when reversing.
[tab name='Specifications']
Specifications
| Specification | Details |
|---|---|
| Monitor size | 5″ |
| Screen resolution | 800 × 480 |
| Supported video | AHD 720p |
| Camera support | Up to 2 cameras |
| View selection | Manual switching |
| Video format | Automatic PAL/NTSC |
| Wireless frequency | 2.4GHz |
| Maximum transmission range | Up to 400 m, unobstructed |
| Monitor brightness | 500 cd/m² |
| Monitor contrast ratio | 500:1 |
| Monitor viewing angles | Up: 65° / Down: 85° / Left: 85° / Right: 85° |
| Monitor power input | 12–24V DC |
| Monitor operating temperature | −20°C to +70°C |
| Monitor storage temperature | −30°C to +80°C |
| Camera sensor | 1/3″ colour CMOS |
| Camera viewing angle | 115° |
| Camera minimum illumination | 1 lux |
| Camera transmit power | 24 dBm |
| Camera battery capacity | 9,600mAh |
| Camera mounting | Magnetic base |
| Camera protection rating | IP68 |
| Camera vibration resistance | Up to 10G |
