HD Wireless Camera System with 5” Monitor
SKU RCS50W
R4 313.04
Additional Camera
Please choose
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
HD Wireless Camera System with 5” Monitor
Product Details
[tab name='Product Description']

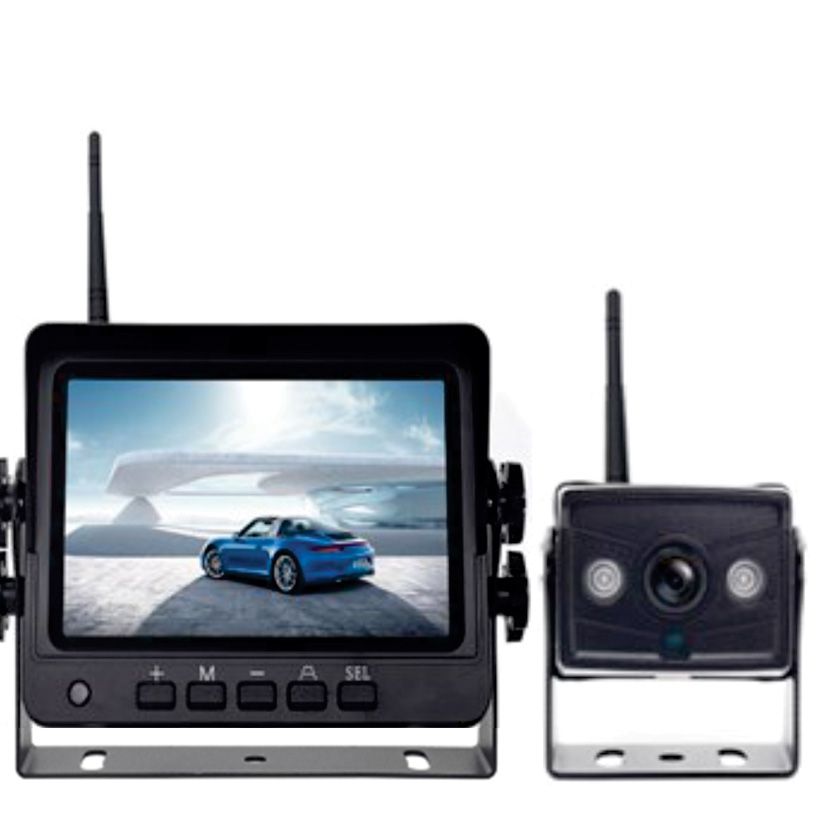

5″ Wireless Monitor & Camera System
Clear rear visibility for confident reversing and manoeuvring.
Improve visibility around your vehicle or caravan with the 5″ Wireless Monitor & Camera System. Featuring a compact digital display and an IP68-rated camera, it is a practical solution for caravans, trailers, trucks, bakkies and off-road setups.
The monitor supports up to two cameras, with manual switching between views. Digital wireless video transmission reduces the need for lengthy video cabling between the camera and monitor.
Need an additional camera? Select the RCS902 camera from the side menu.
Monitor Features
- 5″ colour display: 800 × 480 screen resolution with AHD 720p support.
- Two-camera support: Manually switch between two connected cameras.
- Automatic PAL/NTSC adaptation: Accommodates either video format.
- 2.4GHz digital receiver: Wireless transmission range of up to 400 metres in unobstructed conditions.
- Wide viewing angles: View the display from different seating positions.
- 12–24V DC input: Suitable for compatible vehicle electrical systems.
- Suction-cup mount included: Offers a convenient monitor mounting option.
Camera Features
- 1/3″ colour CMOS sensor: Delivers clear colour images.
- 115° viewing angle: Provides broad coverage behind your vehicle.
- Low-light capability: Minimum illumination of 1 lux.
- 2.4GHz digital transmitter: Wireless video transmission to the monitor.
- IP68 protection: Camera housing resists dust and water ingress.
- 10G vibration resistance: Designed to handle demanding vehicle applications.
Installation & Use
Wireless video transmission simplifies installation, but the monitor and camera still require suitable power connections. Actual transmission range depends on vehicle construction, obstructions and interference.
The IP68 rating applies to the camera. Use the system as a driving aid alongside your mirrors and direct observation.
[tab name='Specifications']
Specifications
| Specification | Details |
|---|---|
| Monitor size | 5″ |
| Screen resolution | 800 × 480 |
| Supported video | AHD 720p |
| Camera support | Up to 2 cameras |
| View selection | Manual switching |
| Video format | Automatic PAL/NTSC |
| Wireless frequency | 2.4GHz |
| Maximum transmission range | Up to 400 m, unobstructed |
| Monitor brightness | 500 cd/m² |
| Monitor contrast ratio | 500:1 |
| Monitor viewing angles | Up: 65° / Down: 85° / Left: 85° / Right: 85° |
| Monitor power input | 12–24V DC |
| Monitor operating temperature | −20°C to +70°C |
| Monitor storage temperature | −30°C to +80°C |
| Camera sensor | 1/3″ colour CMOS |
| Camera viewing angle | 115° |
| Camera minimum illumination | 1 lux |
| Camera transmit power | 24 dBm |
| Camera protection rating | IP68 |
| Camera vibration resistance | Up to 10G |
| Additional camera part number | RCS902 |
