Name: FocusOutdoor® 300W Flexible HPBC ETFE Solar Panel
Brand: MYSO
SKU: MT-SO300W-BL
Price: 6082.61 ZAR
Availability: InStock

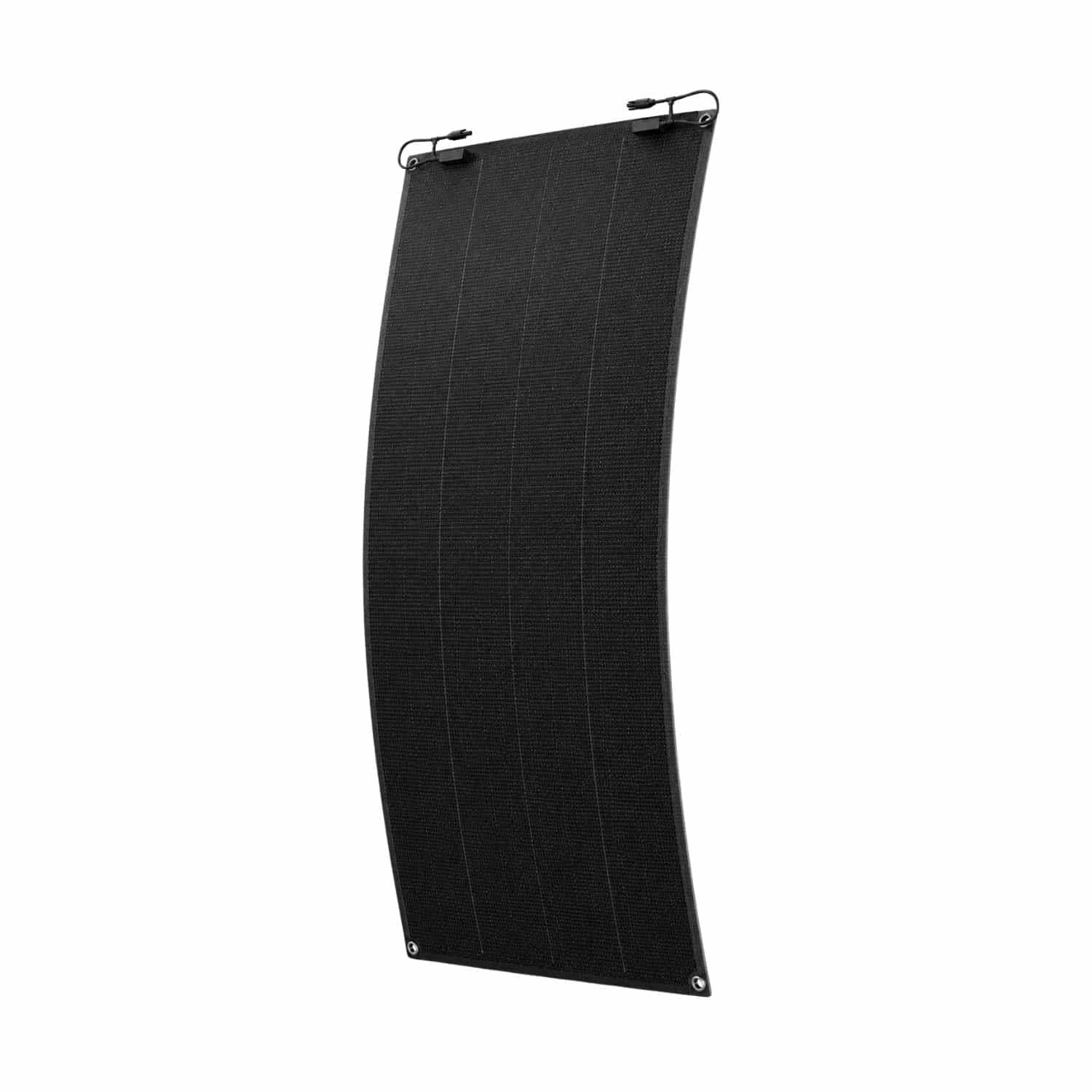

FocusOutdoor® 300W Flexible HPBC ETFE Solar Panel

Product Details

FocusOutdoor® 300W Flexible HPBC ETFE Solar Panel

Generate more power for larger off-grid and mobile-energy systems with the FocusOutdoor® 300W Flexible HPBC ETFE Solar Panel. Its lightweight, low-profile construction makes it suitable for compatible gently curved surfaces on caravans, trailers, campervans, boats and canopies.

Combining high-efficiency HPBC monocrystalline cells with a durable ETFE surface, this panel is designed for demanding outdoor conditions. The attached MC4 leads allow convenient integration with a compatible solar charge controller, battery system or portable power station.

HPBC Solar-Cell Technology

HPBC—or Hybrid Passivated Back Contact—technology places the electrical contacts on the back of the solar cells, leaving more of the front surface available to absorb sunlight.

Benefits include:

Cell conversion efficiency of more than 26%
Good performance in low-light and overcast conditions
Improved energy harvesting during morning and late-afternoon sunlight
More generating capacity from a compact panel footprint
Increased charging capacity for larger compatible battery systems
Clean, unobstructed cell surface

Durable ETFE Surface

The ETFE-laminated surface offers several advantages over conventional PET-covered flexible panels:

Improved resistance to UV exposure
Better protection against scratches and moisture
Reduced risk of yellowing and surface degradation
Suitable for hot, sunny and coastal environments
Designed for long-term outdoor use

Features

Rated output of 300 W
High-efficiency HPBC monocrystalline cells
Cell conversion efficiency exceeding 26%
Lightweight and flexible construction
Suitable for compatible gently curved surfaces
Durable ETFE protective surface
Good low-light and overcast-weather performance
Compact 2.6 mm profile
Attached positive and negative MC4 leads
Suitable for larger compatible battery banks and portable power stations
Ideal for camping, caravanning, overlanding, boating and off-grid systems

Specifications

Rated power: 300 W
Solar-cell type: HPBC monocrystalline silicon
Cell dimensions: 182 × 96 mm
Number of cells: 72, arranged 18 × 4
Cell conversion efficiency: More than 26%
Calculated module efficiency: Approximately 21.6%
Maximum power voltage (Vmp): 20.0 V
Maximum power current (Imp): 15.0 A
Open-circuit voltage (Voc): 25.0 V
Short-circuit current (Isc): 16.0 A
Surface material: ETFE
Panel dimensions: 1,800 × 770 × 2.6 mm
Panel weight: 5.18 kg
Output: 0.3 m cable with MC4 connectors
Operating temperature: -20°C to 65°C
Packaged weight: 6 kg
Packaged dimensions: 185 × 82 × 3 cm

Suitable Applications

Camping and overlanding
Caravans and trailers
Campervans and canopies
Boats and marine installations
Portable power stations
Larger battery-charging systems
Load-shedding backup systems
Off-grid power installations

What’s in the Box?

1 × FocusOutdoor® 300W Flexible HPBC ETFE Solar Panel
1 × Pair of attached MC4 output leads

Whether you are powering a campsite, charging a caravan battery bank or expanding an off-grid system, this 300 W panel provides substantial generating capacity in a lightweight, low-profile format.

Installation note: A suitably rated solar charge controller is required when charging a battery directly. Because the panel can produce up to 15 A at maximum power, confirm that the controller, cabling, connectors and protection devices are correctly rated. Flexible panels should only follow gentle curves and must not be sharply bent, folded, walked on or installed where heat cannot dissipate. Professional installation is recommended for permanent vehicle or marine applications.
