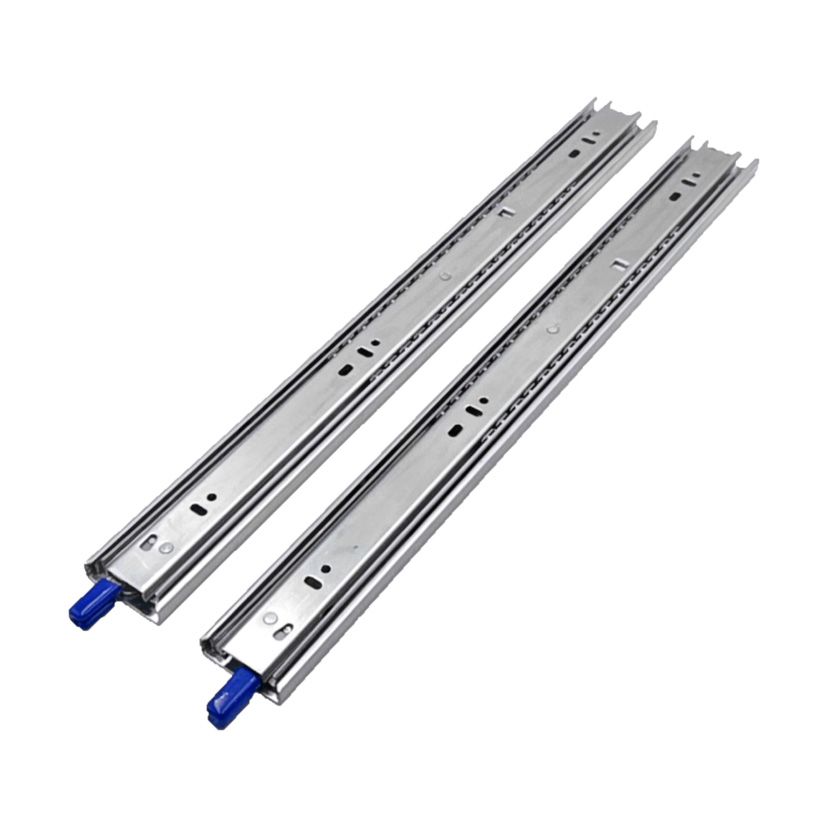

Drawer Locking Slide Medium Duty – 30kg
SKU 303935
R254.78
Drawer Sliders - Select Your Size
Please choose
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
Drawer Locking Slide Medium Duty – 30kg
Product Details
Medium Duty Drawer Slide – 45kg
Keep your drawers accessible and secure with these full-extension medium-duty drawer slides. The lock-in and lock-out mechanism holds the drawer in its closed or fully extended position, with locking mechanisms on both slides.
Suitable for storage drawers in workshops, caravans and camping setups, the removable drawer member allows the drawer to be detached when needed.
Key Features
- Full extension for easy access to the entire drawer
- Lock-in / lock-out mechanism on both slides
- Removable drawer member
- Cold-rolled steel construction with carbon steel balls
- Smooth, low-noise operation when correctly installed
Specifications
| Specification | Details |
|---|---|
| Load rating | 45kg per pair, based on a 450mm slide length |
| Material | Cold-rolled steel |
| Ball material | Carbon steel |
| Maximum assembly screw head height | 2.5mm |
| Maximum assembly screw head diameter | 8.5mm |
| Available lengths | 350mm, 400mm, 450mm and 500mm |
| 303935 | Medium Duty Drawer Slide - 350MM |
| 303940 | Medium Duty Drawer Slide - 400MM |
| 303945 | Medium Duty Drawer Slide - 450MM |
| 303950 | Medium Duty Drawer Slide - 500MM |
