250W Foldable Solar Panel + Victron SmartSolar MPPT 100/30

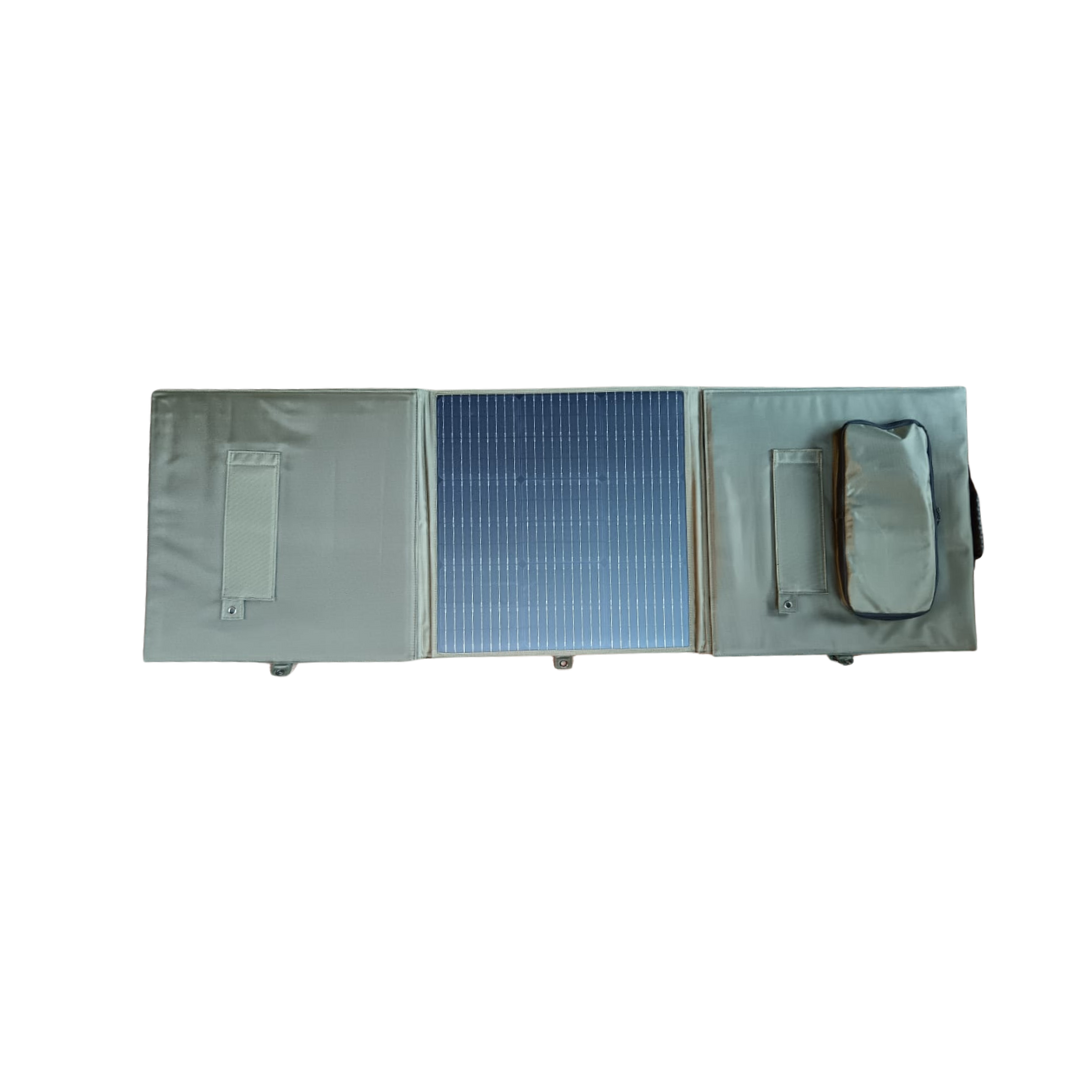

Specifications: Solar Folded Panel

Cell Type:Mono Crystalline Solar Cells (5 Panels)

• Max Power:250 W
• Max Power Voltage:20 V
• Max Power Current: 12,5 A
• Open Circuit Voltage: 23.6 V
• Short Circuit Current: 13.75A
• Panel Dimensions (closed, mm): 555 x 555 x 50
• Dimensions (open, mm) 2805 x 555 x 15
• Net weight:8.45kg

This mobile solar panel is equipped with high-efficiency monocrystalline cells that ensure reliable energy conversion. It offers a high sunlight-to-energy conversion rate, making it ideal for dependable, on-the-go power. Park in the shade, set up the panels in the sun.

Ultra-Portable Power: 250W of solar energy in a medium weight, foldable panel.

Durable Design: Glass-free, aluminum-free construction for ultimate toughness.

Optimized Performance: 45° tilt angle for maximum power output, even in low-light conditions.

Long-Lasting Efficiency: High-tech cells with anti-microcrack technology and a 1 year warranty on the solar panels.

Easy to Transport: Its compact size makes it easy to store in any vehicle, even when fully packed.

• Included in Kit: Solar Blanket x 1
• Controller Storage Pouch x 1
• Storage Pouch with 10m extension: x 1
• Battery Clip x 1

Specifications: SmartSolar Charge ControllerMPPT 100/30 (Victron Energy)

• Battery voltage: 12/24 V Auto Select
• Rated charge current: 30 A
• Nominal PV power, 12 V1a,b)440 W
• Nominal PV power, 24 V 1a,b) 880 W
• Maximum PV open circuit voltage Max. 100 V
• PV short circuit current 2) 35 A
• Maximum efficiency 98 %
• Self-consumption:12 V: 30 mA 24 V: 20 mA
• Charge voltage 'absorption' :Default setting: 14,4 V / 28,8 V (adjustable)
• Charge voltage 'float' : Default setting: 13,8 V / 27,6 V (adjustable)
• Charge algorithm: multi-stage adaptive
• Temperature compensation: -16 mV / °C resp. -32 mV / °C
• Protection: PV reverse polarity, Output short circuit, Over temperature
• Operating temperature : -30 to +60 °C (full rated output up to 40 °C)
• Humidity: 95 %, non-condensing

ENCLOSURE:

• Colour: Blue (RAL 5012)
• Power Terminals: 16 mm² / AWG6
• Protection Category: IP43 (electronic components)
• IP22 (connection area)
• Weight: 1,3 kg
• Dimensions: 130 x 186 x 70 mm

STANDARDS

• Safety: EN/IEC 62109-1, UL 1741, CSA C22.2

STORED TRENDS

• Battery voltage,current and temperature, as well as load output current, PV Voltage and PV current.
• Number of days trend data is stored: 46

1a) If more PV power is connected, the controller will limit input power.

1b) The PV voltage must exceed Vbat + 5 V for the controller to start. Thereafter the minimum PV voltage is Vbat + 1 V.

2) A PV array with a higher short circuit current may damage the controller.
