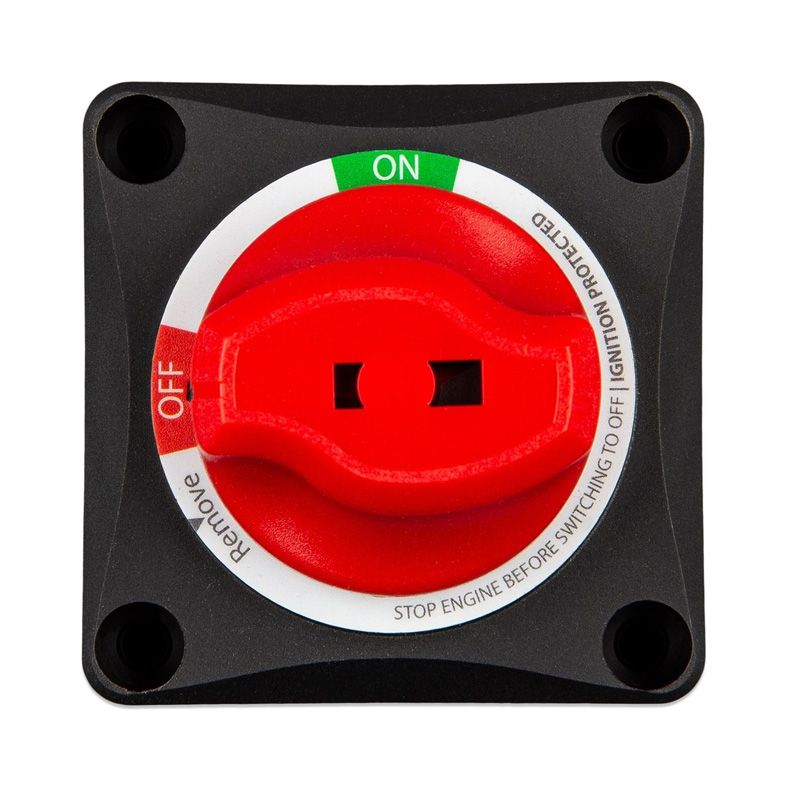

Victron Battery switch on/off 275A

Battery Switch 275A: The Battery Switch has a continuous current rating and is suitable for battery systems up to 48V. It has a unique ergonomic and aesthetic knob design for easy operation.

Usages: The Battery Switch can be used to isolate a battery from DC loads and/or DC charge sources. It is used to preserve battery charge in case a system is unattended, for system maintenance or in an emergency. It can also be used to parallel connect the house battery to the starter battery to supplement a flat starter battery or a flat house battery in case of an emergency.

Installation: The Battery Switch can be either surface or panel mounted, providing flexibility during install. It features 4 easily removable side panels for cable access. It ships with 16 different label stickers, for customization of the Battery Switch.

Safety: The knob is removable for isolation or safety purposes. The Battery Switch meets the ISO8846 Ignition Protection standard and is suitable for use in an engine room.

• Max. continuous current 275 A
• One minute rating 450 A
• Cranking rating 1200 A
• Voltage rating 48 V
• Terminal material Tin-plated copper
• Hex nut material Tin-plated copper
• Terminal diameter 3/8 inch / 9.53 mm
• Recommended torque 70 lbf·inch / 8 N·m
• Base material Glass fiber reinforced nylon
• Weight 0.4 lb / 0.2 kg
• Dimensions (hxwxd) 69 x 69 x 73 mm
• Mounting Surface or rear panel mount
• Ignition protected ISO8846 / SAE J1171
