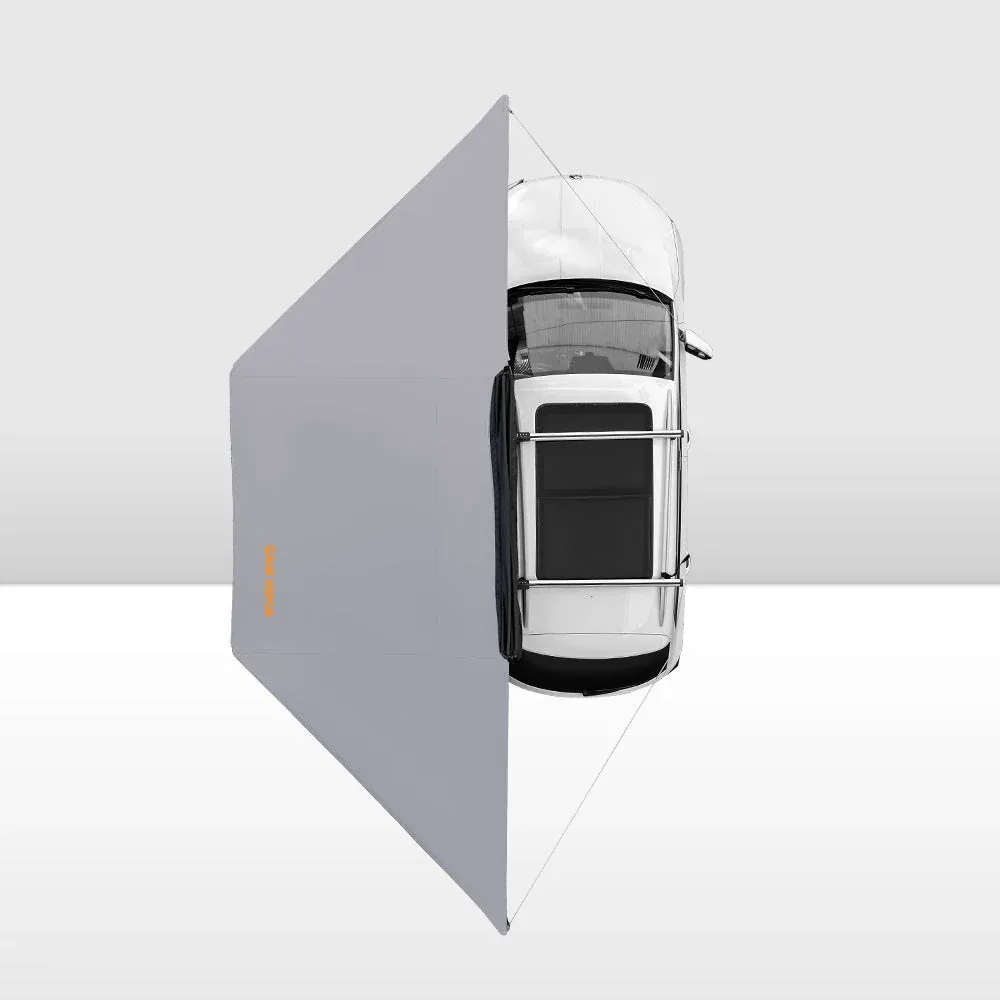

Name: San Hima 180° Freestanding 4×4 Awning with Integrated Support Legs
Brand: 4WD Warehouse
SKU: SH-SA180-GREY-VOR
Price: 10430.43 ZAR
Availability: InStock

+10

San Hima 180° Freestanding 4×4 Awning with Integrated Support Legs

Product Details

San Hima 180° Freestanding 4×4 Awning with Integrated Support Legs

Create a spacious and protected outdoor living area with the San Hima 180° Freestanding Awning. Providing approximately 7.8 m² of coverage, it offers ample shelter for cooking, relaxing or setting up a swag beside your vehicle.

The Incorporated Support System connects the vertical support legs directly to the horizontal arms. This allows each component to fold into position during setup, eliminating the inconvenience of searching for or attaching loose poles. One person can open the awning in approximately one minute.

Manufactured from mould-resistant 600D double-ripstop Oxford fabric, it provides a 3,000 mm waterproof rating and UV 50+ protection. Dual-colour LED lighting is incorporated into the structure, while the heavy-duty 1,000G PVC travel bag protects the awning during transport and storage.

Features

180° design provides approximately 7.8 m² of shelter
Incorporated Support System enables quick one-person setup
Opens in approximately one minute
Freestanding design for convenient short stops and campsite setup
Integrated vertical legs fold down from the horizontal arms
No separate support poles to locate or attach
Leg height adjusts from 1.7 to 2.35 m
Built-in pegs help secure the vertical support legs
Velcro stabilisers reinforce the awning arms
Supplied guy ropes and pegs provide additional stability
Mould-resistant 600D double-ripstop Oxford fabric
Waterproof tape helps protect vulnerable seams
3,000 mm waterproof rating
UV 50+ sun protection
Strong powder-coated aluminium frame
Stainless-steel knuckles provide durable pivot points
1,000G PVC reinforcement in high-stress areas
Integrated dual-colour LED lighting
Orange light mode attracts fewer insects than conventional white light
Integrated Velcro allows compatible awning walls to be attached
Awning walls are sold separately
Can be installed on the driver side, passenger side or rear of a suitable vehicle
Heavy-duty fire-retardant 1,000G PVC travel bag
Large zip tabs provide easier access to the packed awning

Specifications

Specification	Details
Awning coverage	180°
Approximate covered area	7.8 m²
Mounting position	Driver side, passenger side or rear
Awning material	600D double-ripstop Oxford fabric
Pole material	Powder-coated aluminium
Adjustable height	1.7–2.35 m
Travel-bag material	1,000G PVC
Waterproof rating	3,000 mm
Sun protection	UV 50+
Package dimensions	2,100 × 200 × 160 mm
Package weight	23.8 kg
Warranty	2 years

Package Includes

1 × San Hima 180° Awning
2 × Mounting brackets
4 × Guy ropes
4 × Pegs
1 × USB-to-DC adaptor cable
12 × M8 T-bolts
12 × M8 washers
12 × M8 nuts
4 × M6 bolts
4 × M6 flat washers
4 × M6 spring washers
4 × M6 channel nuts
1 × Storage bag
1 × User manual

Important Installation and Safety Notes

Although the awning can stand without its vertical legs for convenient setup in calm conditions, using the integrated legs, guy ropes and pegs is strongly recommended. The manufacturer references wind resistance of up to 48 knots, but this should only be considered under appropriate installation and fully secured conditions—not as a guarantee in all environments.

Wind direction, ground conditions, mounting strength and sudden gusts can significantly affect stability. Fold the awning away during strong winds, storms or whenever it will be left unattended. Damage caused by failing to secure the awning correctly may not be covered under warranty.

Confirm that your vehicle’s roof rack or mounting system can safely support the awning before installation. Professional fitment is recommended.
