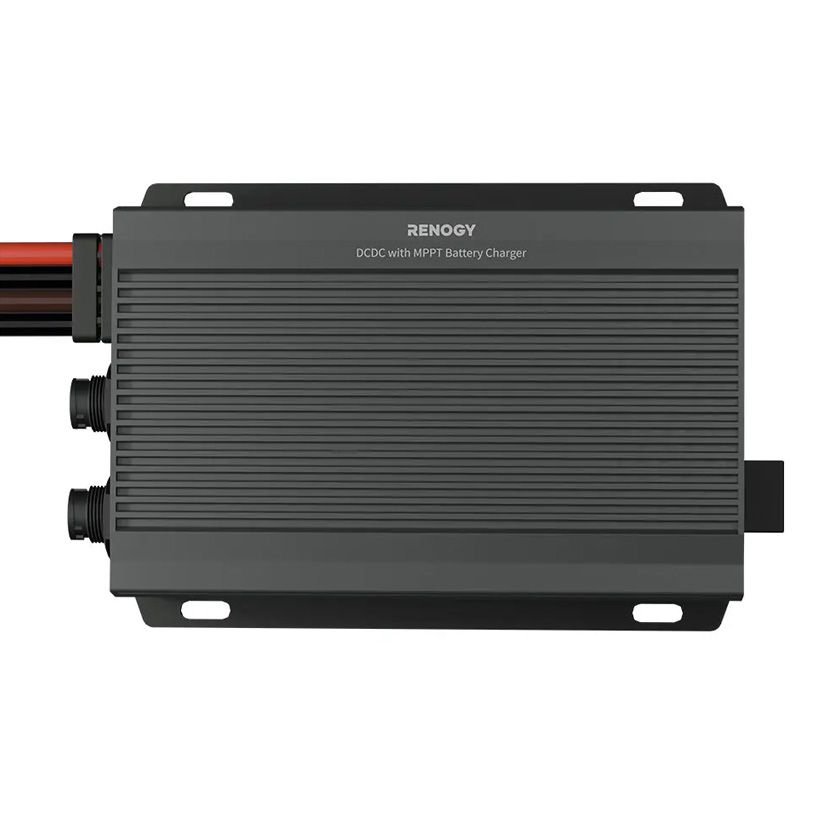

Renogy Rego 12V/24V IP67 50A DC-to-DC Battery Charger with MPPT
SKU RBC2125DS-21W-G3-SA
R5 574.78
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
Renogy Rego 12V/24V IP67 50A DC-to-DC Battery Charger with MPPT
Product Details
Renogy Rego 12V/24V IP67 50A DC-to-DC Battery Charger with MPPT
The Renogy Rego IP67 50A DC-to-DC Dual-Input Battery Charger with MPPT delivers intelligent, efficient charging in a slim and durable design.
Its advanced boost-and-buck technology supports 12V and 24V input and output systems, allowing it to increase or decrease voltage according to the application. The charger intelligently combines alternator and solar input while prioritising available solar energy, helping reduce alternator demand and maximise auxiliary-battery charging.
With up to 720W output, an IP67-rated enclosure and advanced communication capabilities, it is ideal for caravans, motorhomes, campers, overlanding vehicles, marine applications and off-grid systems.
Key Features
- Dual-input DC-to-DC and MPPT battery charger
- Supports 12V and 24V input and output systems
- Intelligent boost-and-buck voltage control
- Maximum output of 50A at 12V or 25A at 24V
- Maximum output power of 720W
- Automatically manages alternator and solar charging
- Prioritises available solar energy
- Up to 99% MPPT tracking efficiency
- Up to 97% MPPT charging efficiency
- Bluetooth energy monitoring
- Wired CAN communication
- Modbus and RV-C communication protocols
- Compact and lightweight construction
- IP67-rated dust- and water-resistant enclosure
- Five-year material warranty
Intelligent Dual-Input Charging
The charger intelligently combines vehicle-alternator and solar power, automatically adjusting its charging behaviour according to available sunlight and driving conditions. Solar power is prioritised whenever available, helping reduce wasted energy and alternator operating time.
12V and 24V Compatibility
Advanced boost-and-buck technology allows the charger to operate across 12V and 24V systems. This provides flexible charging between compatible 12V and 24V alternator and auxiliary-battery configurations.
Energy Monitoring and Communication
Bluetooth energy monitoring provides convenient access to compatible system information, while wired CAN, Modbus and RV-C communication support integration into compatible vehicle and power-management systems.
Charging Specifications
| Specification | Details |
|---|---|
| System voltage | 12V/24V input to 12V/24V output |
| Maximum output current | 50A at 12V or 25A at 24V |
| Maximum output power | 720W |
| Solar input voltage | Up to 50V DC |
| Alternator input voltage | 9–32V DC |
| Output voltage | 9–32V DC |
| Supported battery types | AGM/sealed lead-acid, gel, flooded, lithium and user-defined |
| MPPT tracking efficiency | Up to 99% |
| MPPT charging efficiency | Up to 97% |
| Conversion efficiency | Up to 94% |
| Idle power consumption | Less than 100mA |
| Input fuse rating | 60–80A |
| Output fuse rating | 75–100A |
| Non-lithium temperature compensation | -3mV/°C/2V |
| Lithium temperature compensation | 0mV/°C/2V — no compensation |
General Specifications
| Specification | Details |
| Model | RBC2125DS |
| Terminal cable range | 8AWG–4AWG |
| Communication protocols | Modbus and RV-C |
| Operating temperature | -35°C to 80°C (-31°F to 176°F) |
| Storage temperature | -40°C to 100°C (-40°F to 212°F) |
| Operating humidity | 0%–95% RH, non-condensing |
| Maximum operating altitude | 3500m |
| Enclosure rating | IP67 |
| Dimensions | 178.2 × 121.5 × 37.5mm (7.01 × 4.78 × 1.47in) |
| Weight | 1.86kg (4.10lb) |
Integrated Protection
- Reverse-polarity protection
- Overvoltage protection
- Over-discharge protection
- Overcurrent protection
- Over-temperature protection
Certifications and Warranty
| Specification | Details |
| Certifications | UL1741, CE, RoHS and FCC Part 15 Class B |
| Warranty | Five-year material warranty |
| Product category | DCCS dual-input charge controller and battery charger |
Recommended Applications
- Caravans and motorhomes
- Campers and overlanding vehicles
- 12V and 24V dual-battery systems
- Marine applications
- Off-grid solar installations
- Commercial and recreational vehicles
Important Installation Note
Installation should be completed according to Renogy’s specifications by a suitably qualified installer. Confirm compatibility between the charger and all batteries, alternators, solar panels, cabling, fuses and system communication equipment before installation.
