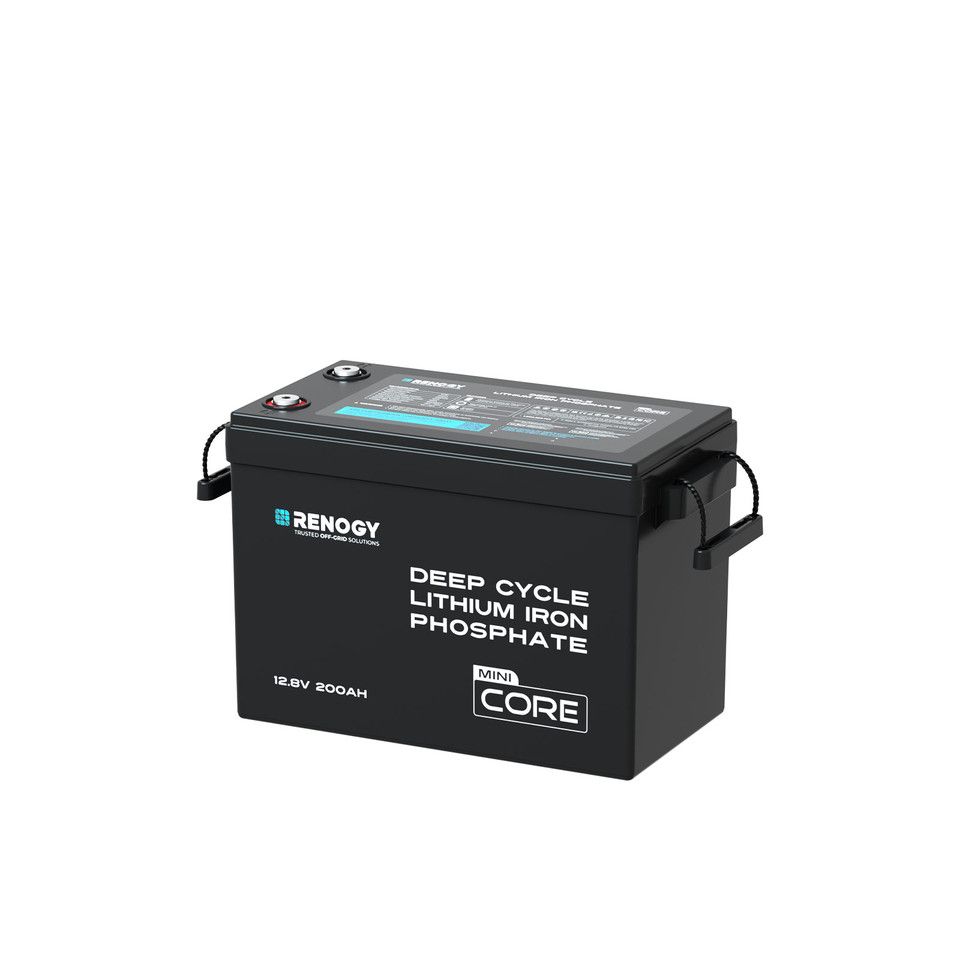

Name: Renogy 12.8V 200Ah Mini Deep-Cycle Lithium Iron Phosphate Battery
Brand: Renogy
SKU: RBT12200LFP-M-G1-SA
Price: 13193.04 ZAR
Availability: InStock

Renogy 12.8V 200Ah Mini Deep-Cycle Lithium Iron Phosphate Battery

Product Details

Renogy 12.8V 200Ah Mini Deep-Cycle Lithium Iron Phosphate Battery

Power more with less space. The Renogy 12.8V 200Ah Core Mini LiFePO₄ Battery delivers an impressive 2560Wh of energy in a compact, lightweight design—ideal for caravans, campers, motorhomes, vans, trolling motors and off-grid power systems.

Despite its smaller footprint, this powerful battery features a robust 200A Battery Management System, automatic low-temperature protection and a peak discharge current of up to 380A for 10 seconds. This allows it to handle appliances with demanding start-up currents while providing reliable power wherever your adventures take you.

Compact, Powerful and Adventure-Ready

The compact design makes installation easier where space is limited, while the internal metal cell spacers improve resistance to vibration on rough roads and choppy water.

With an IP65 protection rating, the battery is resistant to dust and water jets, making it suitable for demanding outdoor and mobile applications.

Key Features

Compact 12.8V 200Ah LiFePO₄ deep-cycle battery
Impressive 2560Wh energy capacity
Powerful built-in 200A Battery Management System
Automatic low-temperature charge and discharge cut-off
Maximum continuous discharge current of 200A
Peak discharge current of 380A for up to 10 seconds
Up to 5000 cycles at 80% depth of discharge
IP65 dust- and water-resistant construction
Internal metal cell spacers for improved vibration resistance
Compatible with the Renogy 300A Battery Shunt for remote monitoring
Certified to multiple international safety and compliance standards
Five-year prorated warranty

Automatic Low-Temperature Protection

The built-in Battery Management System automatically protects the battery against charging or discharging at unsafe low temperatures. This provides added peace of mind during cold-weather travel without requiring constant manual monitoring.

High Peak-Power Output

With a peak discharge capability of 380A for up to 10 seconds, the battery can support compatible appliances with high start-up current requirements.

Applications

Caravans and campers
Motorhomes and vans
Off-grid solar systems
Backup power systems
Trolling motors
Mobile and outdoor power setups

Electrical Specifications

Specification	Details
Rated capacity	200Ah (0.5C at 25°C)
Nominal voltage	12V
Energy capacity	2560Wh
Cycle life	5000 cycles (80% DOD, 80% EOL at 25°C)

Temperature Parameters

Specification	Details
Charging temperature	0°C to 55°C (32°F to 131°F)
Discharging temperature	-20°C to 65°C (-4°F to 149°F)
Storage temperature	-20°C to 60°C (-4°F to 140°F)
Operating relative humidity	5%–95%

Charging Parameters

Specification	Details
Operating voltage range	10V–14.6V
Maximum continuous charge current	100A

Discharging Parameters

Specification	Details
Maximum continuous discharge current	200A
Peak discharge current	380A for 10 seconds

Physical Specifications

Specification	Details
Dimensions (L × W × H)	384 × 194 × 253mm (15.12 × 7.64 × 9.96in)
Weight	19.25kg (42.44lb)
Terminal bolt sizes	M8 × 1.25 × 12mm and M8 × 1.25 × 16mm
Protection rating	IP65

Warranty and Certifications

Specification	Details
Warranty	Five-year prorated warranty covering defects in materials and workmanship
Certifications	MSDS, UN38.3, FCC, CE, PSE, RCM, IC, RoHS and UKCA

Recommended Applications

Application	Suitable For
Recreational vehicles	Caravans, motorhomes, vans and campers
Marine applications	Trolling motors

DOWNLOAD MANUAL
