Lumeno-12V 200Ah Lithium Blade Battery (LiFePO₄)
SKU LUMENO-0005701
R14 781.74
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
Lumeno-12V 200Ah Lithium Blade Battery (LiFePO₄)
Product Details
[tab name='Product Description']

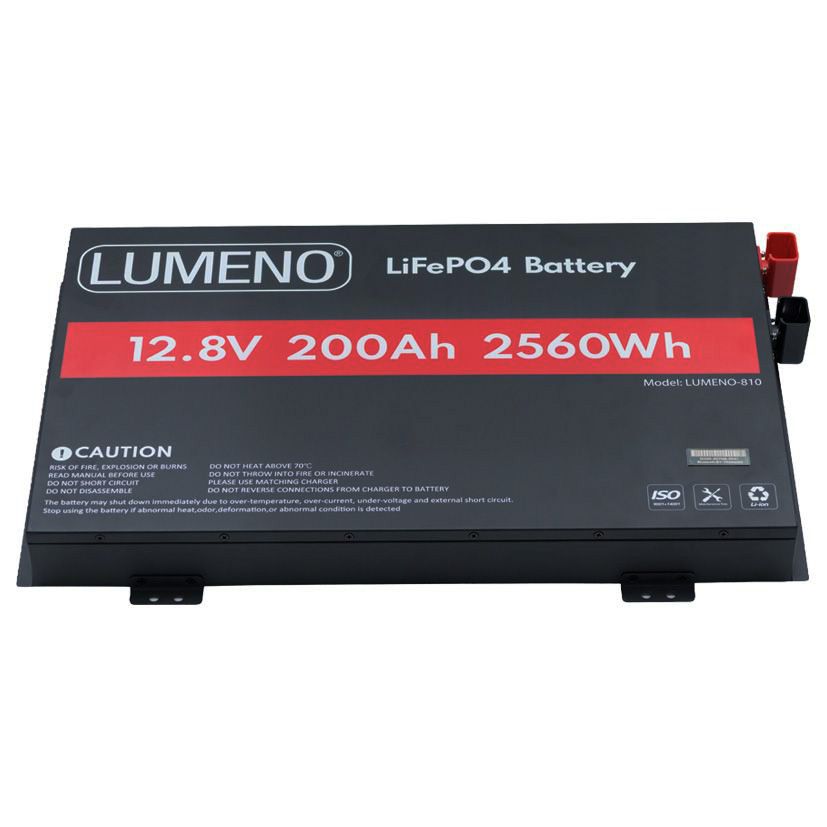

LUMENO-810 | 12V 200Ah Lithium Blade Battery (LiFePO₄)
High-capacity power in a slim design. The LUMENO-810 provides 2560Wh of energy in a steel case just 65 mm high. Its detachable mounting brackets make it suited to solar, inverter and backup power installations where space matters.
A built-in Battery Management System (BMS) provides voltage, current and temperature protection with cell balancing. Bluetooth monitoring lets you check battery information through a mobile app. Up to four batteries can be connected in parallel when you need greater capacity.
Key features
- 12.8V, 200Ah LiFePO₄ battery with 2560Wh energy capacity
- Ultra-slim blade design with detachable mounting brackets
- Built-in BMS and Bluetooth monitoring
- 80% usable depth of discharge
- Rated for 4,000–6,000 cycles
- Supports up to four batteries in parallel
- 3-year warranty
[tab name='Specifications']
| Feature | Specification |
|---|---|
| Model | LUMENO-810 |
| Battery type | LiFePO₄ |
| Nominal voltage | 12.8V |
| Capacity | 200Ah |
| Energy | 2560Wh |
| Usable depth of discharge | 80% |
| Weight | 26 kg |
| Cycle life | 4,000–6,000 cycles |
| Charge cut-off voltage | 14.6V |
| Discharge cut-off voltage | 10V |
| Standard charge current | 20–50A |
| Maximum continuous charge current | 200A |
| Maximum continuous discharge current | 200A |
| Maximum pulse current | 400A |
| BMS | Voltage, current and temperature protection with cell balancing |
| Bluetooth monitoring | Yes, via mobile app |
| Charging temperature | 0°C to +45°C |
| Discharging temperature | −20°C to +60°C |
| Recommended storage temperature | 0°C to +35°C |
| Parallel connection | Up to 4 batteries |
| IP rating | IP24 |
| Case material | Cold-rolled steel |
| Dimensions, including brackets | 650 × 430 × 65 mm |
| Mounting | Detachable brackets |
| Terminals | M8 and 2 × 50A square connectors |
| Warranty | 3 years |
Please check that your charger, inverter and installation are compatible with these specifications before ordering.
[tab name='Download App']
100Ah BMS (Battery Management System)
App Compatible: Scan QR Code to Download App
App Store
Google Play
