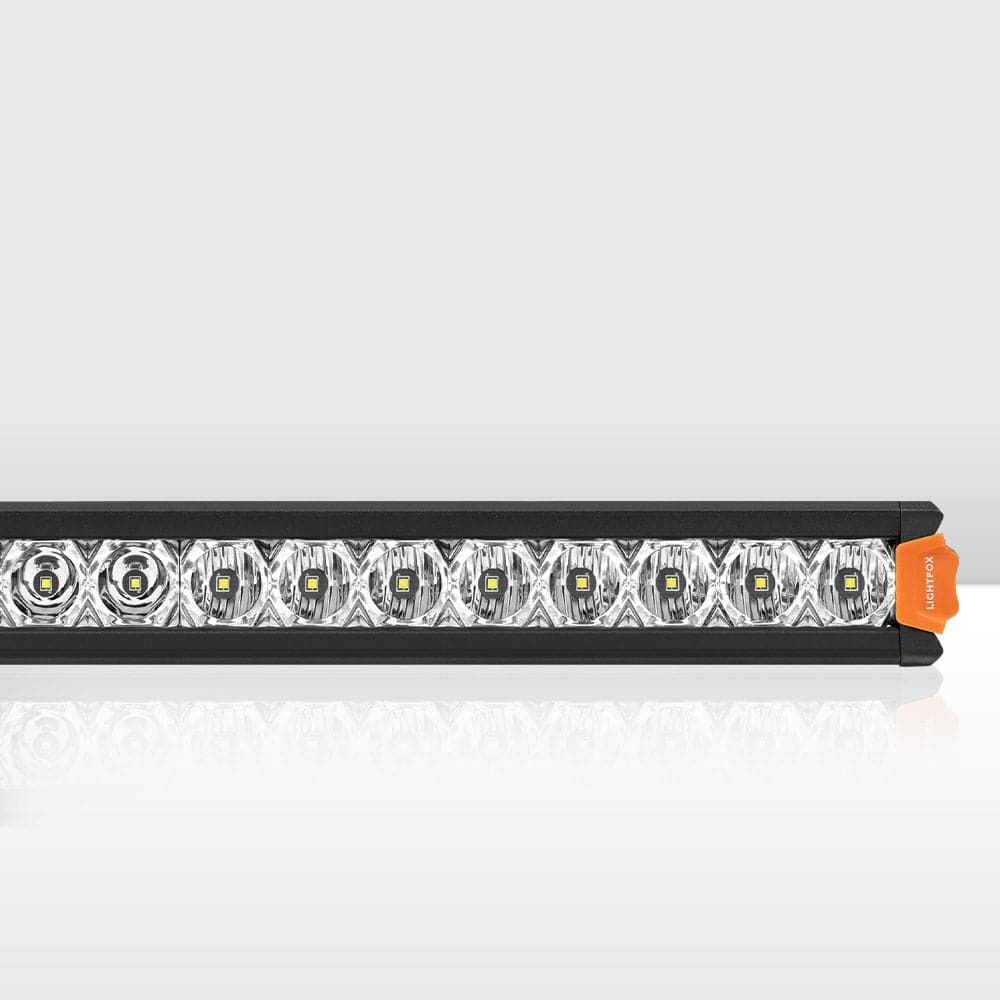

Lightfox Vega Series 28" Osram LED Light Bar – 17,612 Lumens
SKU LF-LB-28SR-VOR
R3 039.13
Incl.or Excl. Wiring
Please choose
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
Lightfox Vega Series 28" Osram LED Light Bar – 17,612 Lumens
Product Details
Lightfox Vega Series 28" Osram LED Light Bar – 17,612 Lumens | 1Lux @ 494m | IP68 Waterproof
Short Description
The Lightfox Vega Series 28" Osram LED Light Bar delivers exceptional long-range visibility and wide-angle illumination for serious off-road enthusiasts. Featuring premium OSRAM OSLON® LEDs, advanced Vision Drive Technology, and a combination 13° spot and 60° flood beam pattern, this light bar produces an impressive 17,612 lumens and reaches 494 metres at 1 Lux. Built tough with IP68 waterproof protection and a durable aluminium housing, it's ready for any adventure.
Product Description
Designed for drivers who demand superior visibility and reliability, the Lightfox Vega Series 28" Osram LED Light Bar combines powerful performance with advanced optical engineering.
Powered by 28 premium OSRAM OSLON® LEDs, this high-output single-row light bar generates an impressive 17,612 lumens while projecting usable light up to 494 metres at 1 Lux. The carefully engineered reflector configuration combines a focused 13° spot beam with wide 60° flood beams, providing exceptional forward distance while maintaining broad peripheral visibility.
At the heart of the Vega Series is Lightfox's renowned Vision Drive Technology. Using curved and metallised reflectors, this advanced optical system maximises light harvesting, reduces beam scatter, and delivers a smooth, clean beam pattern that enhances visibility on remote tracks, highways, overlanding routes, and work sites.
The 5,500K colour temperature produces a crisp white beam that is slightly warmer than traditional cool-white LEDs, helping reduce eye fatigue during extended night driving while maintaining excellent contrast and terrain definition.
Built to withstand the harshest environments, the Vega Series features a rugged aluminium housing protected by premium AkzoNobel powder coating for outstanding resistance to corrosion, UV exposure, and environmental wear. The strengthened polycarbonate lens is highly resistant to impacts, scratches, and yellowing, ensuring long-lasting optical clarity.
The screwless front frame design combined with UV resin sealing delivers a fully sealed IP68 waterproof and dustproof rating, making the light bar ideal for mud, rain, river crossings, dust, and high-pressure washdowns. An integrated breather system prevents condensation build-up, while built-in electronics protect against reverse polarity and flickering for reliable operation in demanding conditions.
Dual mounting options allow installation using either side brackets or bottom mounts, providing maximum flexibility for fitment on bull bars, roof racks, canopies, nudge bars, trailers, and utility vehicles.
To personalise your setup, the Vega Series includes interchangeable colour caps in Yellow, Orange, Grey, Black, and Red, allowing you to match your vehicle's styling while standing out from the crowd.
Features
- Premium OSRAM OSLON® LED technology
- Massive 17,612 lumen output
- Long-range beam distance of 494m at 1 Lux
- Combination 13° spot beam and 60° flood beam pattern
- Advanced Vision Drive Technology
- Curved and metallised reflector design
- Crisp 5,500K colour temperature
- Single-row light bar design
- Heavy-duty aluminium housing
- Strengthened polycarbonate lens
- AkzoNobel powder-coated finish
- Integrated breather prevents condensation
- Reverse polarity and anti-flicker protection
- IP68 waterproof and dustproof rating
- Side and bottom mounting options included
- Interchangeable colour caps included
- Ideal for off-road, overlanding, touring, agricultural, marine, and commercial applications
Technical Specifications
| Specification | Details |
|---|---|
| Bulb Type | LED |
| LED Chip | 5W x 28 OSRAM OSLON® LEDs |
| Theoretical Output | 140W |
| Housing & Heat Sinks | Aluminium |
| Lens Material | Strengthened Polycarbonate (PC) |
| Coating | AkzoNobel Powder Coating |
| Sealing Material | UV Resin |
| Side Brackets | Forged Iron |
| Bottom Brackets | Aluminium |
| Raw Lumens | 17,612 Lumens |
| Lux Rating | 1Lux @ 494m |
| Colour Temperature | 5,500K |
| Reflector Distribution | 8 Flood + 12 Spot + 8 Flood |
| Spot Beam Angle | 13° |
| Flood Beam Angle | 60° |
| Amp Draw | 8.6A @ 12V |
| Waterproof Rating | IP68 Rated |
| Expected Lifespan | 50,000 Hours |
| Relative Light Intensity | 78% @ 150°C (302°F) |
| Operating Temperature | -40°C to 150°C (-40°F to 302°F) |
| Product Dimensions (with Brackets) | 78 x 4.5 x 6 cm |
| Package Dimensions | 77 x 7.5 x 7.5 cm |
| Gross Weight | 1.7 kg |
Package Includes
- 1 x Lightfox Vega Series 28" LED Single Row Light Bar
- 2 x Side Mount Brackets
- 2 x Bottom Mount Brackets
- Complete Mounting Hardware Kit
- 4 Pairs of Interchangeable Colour Caps
- 1 x User Manual
Warranty
The Lightfox Vega Series 28" Osram LED Light Bar is backed by a comprehensive 5-Year Warranty, ensuring dependable performance and peace of mind wherever your adventures take you.
