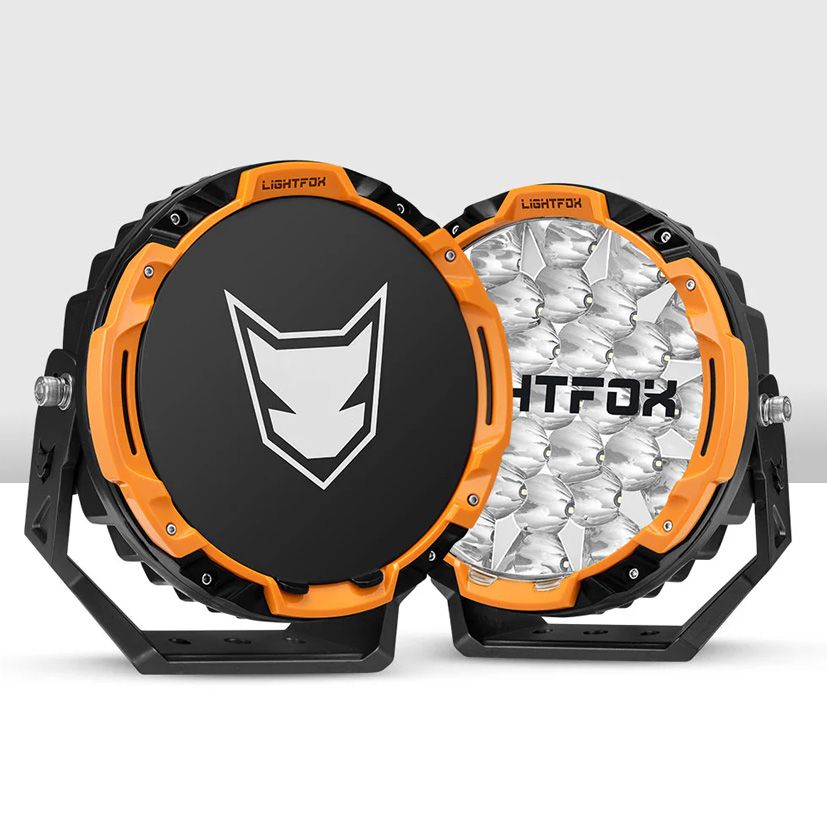

Lightfox 9" LED Driving Light Pair - 16,342 Lumens
SKU LF-DL9-LED5-UFA*2
R8 691.30
Customer reviews
Reviews only from verified customers
No reviews yet. You can buy this product and be the first to leave a review.
Save this product for later
Lightfox 9" LED Driving Light Pair - 16,342 Lumens
Product Details
Lightfox 9" LED Driving Light Pair – 16,342 Lumens | 1Lux @ 2,100m | IP68 Waterproof
Short Description
Take your nighttime visibility to the next level with the Lightfox 9" LED Driving Lights. Delivering an incredible 16,342 lumens and an impressive 1Lux beam distance of 2,100 metres, these premium driving lights are built for serious off-road adventures, long-distance touring, and demanding overland expeditions.
Product Description
Built for extreme performance and styled to complement modern 4x4 vehicles, the Lightfox 9" LED Driving Lights deliver exceptional illumination for the toughest driving conditions. With a powerful output of 16,342 raw lumens and an impressive beam reach of 2,100 metres at 1 Lux, these driving lights provide the confidence needed for high-speed gravel roads, remote overland routes, and demanding off-road adventures.
At the heart of the Lightfox 9" Driving Lights is advanced Focal Drive Technology, an optic simulation modelling system designed to maximise beam efficiency and minimise wasted light. The result is a highly focused 12° spot beam that projects light further down the road while maintaining excellent clarity and control.
The integrated Interspersed Daytime Running Light (DRL) enhances daytime visibility and gives your vehicle a distinctive, modern appearance. Customisation is easy with the included interchangeable trim rings in black, yellow, and grey, allowing you to match the lights to your vehicle's styling.
Engineered to withstand harsh environments, the lights feature a rugged aluminium housing, strengthened polycarbonate lens, premium AkzoNobel powder coating, and IP68 waterproof protection. Heavy-duty die-cast aluminium mounting brackets and enlarged heat sinks ensure durability, vibration resistance, and efficient cooling during extended operation.
Whether you're exploring remote wilderness areas, navigating challenging trails after dark, or travelling long distances across South Africa, the Lightfox 9" LED Driving Lights deliver outstanding performance, reliability, and style.
Features
- Massive 16,342 lumen output (pair)
- Exceptional 1Lux beam distance of 2,100m (6,890ft)
- Advanced Focal Drive Technology for maximum beam efficiency
- Highly focused 12° spot beam pattern
- Integrated Interspersed Daytime Running Light (DRL)
- Crisp 5,700K daylight-white colour temperature
- Improved visibility with reduced eye fatigue
- Customisable trim rings included (Black, Yellow, and Grey)
- Durable aluminium housing with AkzoNobel powder coating
- Strengthened polycarbonate lens for superior impact resistance
- Heavy-duty 0.5" die-cast aluminium mounting brackets
- Enlarged heat sinks for improved thermal management
- IP68 waterproof and dustproof protection
- Complete wiring harness with DT plugs and switch included
- Ideal for 4x4, overlanding, touring, agricultural, and commercial applications
Technical Specifications
| Specification | Details |
|---|---|
| Bulb Type | High-Performance LEDs |
| Theoretical Output | 310W (Pair) |
| Raw Lumens | 16,342 (Pair) |
| Lux Rating | 1Lux @ 2,100m (6,890ft) (Pair) |
| Colour Temperature | 5,700K |
| Reflector Configuration | 31 Spot LEDs per Light |
| Beam Angle | 12° Spot Beam |
| DRL | Integrated Interspersed DRL |
| Vision Technology | Focal Drive Tech (Optic Simulation Modeling) |
| Voltage Range | 12V – 30V |
| Amp Draw | 22A @ 12V (Pair) |
| Housing Material | Aluminium |
| Coating | AkzoNobel Powder Coating |
| Lens Material | Strengthened Polycarbonate (PC) |
| Sealing Material | Silicone |
| Bracket Material | Die-cast Aluminium (0.5" Thick) |
| Waterproof Rating | IP68 Rated |
| Relative Light Intensity | 78% @ 150°C (302°F) |
| Expected Lifespan | 50,000 Hours |
| Operating Temperature | -40°F to 302°F (-40°C to 150°C) |
| Product Dimensions (with Bracket) | 9.79" x 8.78" x 3.60" (249 x 223 x 91 mm) |
| Package Dimensions | 20.47" x 13.39" x 8.27" (520 x 340 x 210 mm) |
| Package Weight | 18.17 lb (8.24 kg) |
Package Includes
- 1 Pair Lightfox 9" LED Driving Lights
- 2 x Clear Protective Covers
- 2 x Blackout Protective Covers
- 6 x Colour Changing Trim Rings
- 2 x Grey
- 2 x Yellow
- 2 x Black
- 2 x Rubber Pads
- Complete Mounting Kit
- Wiring Harness with DT Plugs and Switch
- User Manual
Warranty
Backed by a comprehensive 5-Year Manufacturer's Warranty, ensuring dependable performance and peace of mind wherever your adventures take you.
